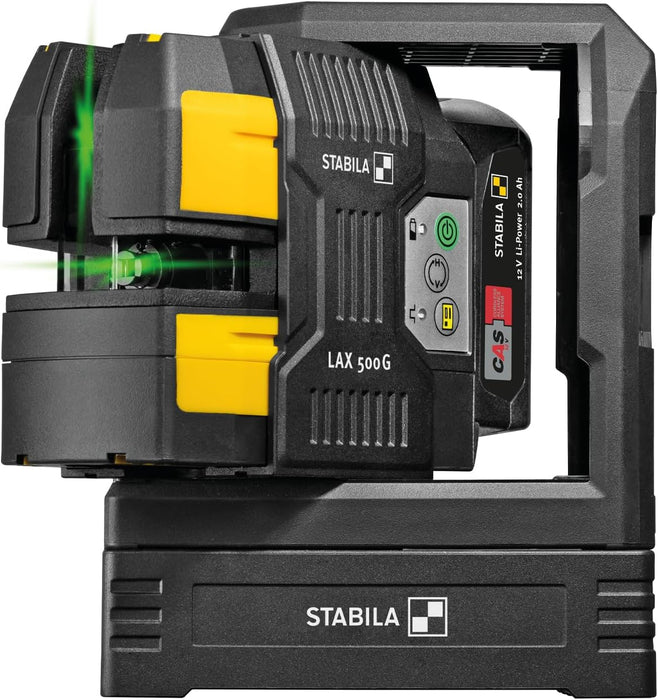

Stabila 03520 LAX 500 G Cross-Line Plumb Laser Kit

Multi-Function Line Laser with 12V Li Power

Discover the powerful LAX 500 G, the cross-line laser with plumb dots and modern rechargeable battery technology. Benefit from the innovative technology of this professional laser: GREENBEAM technology means razor-sharp lines that enable you to transfer heights or align axes at a distance of up to 130 ft/40 m. In manual mode, the laser can be positioned at any desired angle and thanks to the included accessories, is ideal for a range of applications. The laser optics are optimally protected by the proctective housing.

Standard Equipment:

• (1) LAX 500 G Multi-Line Laser (03520)
• (1) 12V / 2.0 Ah CAS Battery
• (1) CAS Charger
• (1) SLB 500 Laser Base
• (1) SWB 10 Wall Bracket
• (1) Target Plate
• (1) Carrying Case

Specifications:

• Power Supply: 12V CAS Battery
• Laser Class: 2
• Output: < 1 mw
• Laser Wavelength: 510 - 530 nm
• Self-Levelling Range ±: 5°
• Levelling Accuracy ±: 1/8" @ 30'
• Laser Beam Accuracy (Up): ±1/8" @ 30'
• Laser Beam Accuracy (Down): ±1/8" @ 30'
• Measuring Range of Visible Line: 130'
• Operating Life: 20 Hours
• Protection Class: IP 54
• Tripod Connection: 1/4"

Features:

• 12 V CAS rechargeable battery-operated, self-leveling cross-line laser with plumb dots for working efficiently on the horizontal and vertical planes.
• GREENBEAM technology: direct work on sharp and perfectly visible lines Ð up to 130 ft/40 m away.
• High-performance diodes: Vertical line covers almost the entire room.
• Manual mode: Positioning the laser at any angle with a locked pendulum mechanism.
• Switchable pulse-modulated lines: compatible for working with line receivers (available as an option).
• Long operating time: 12 V LI-POWER 2.0 Ah CAS rechargeable battery for up to 20 hours of use.
• Short charging times: quick recharging in max. 45 minutes.
• Protective housing for laser optics: Shock-absorbing soft grip exterior, rotatable housing and protective sliders prevent damage.
• Removeable laser base allows the ability to work over bottom plate or base track.
• Flexible positioning: 1/4_ thread, rare-earth magnets and wall bracket.
• Stable carrying case.
• Protection rating IP 54 (without rechargeable battery).
