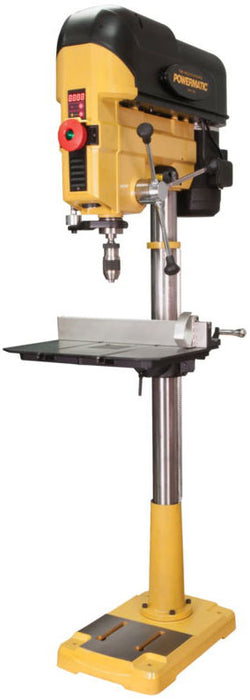

Powermatic 1792800B PM2800B Drill Press


Free Shipping (Contiguous US)

For pricing and availability call us at 860-233-8213

Please Note: Available for In-Store Pickup Only
SKU JET1792800B

Standard Equipment:

  • PM2800B Drill Press - 1792800B

Specifications:

  • Swing: 18"
  • Spindle Travel: 6"
  • Number of Spindle Speeds: Variable
  • Spindle Taper: MT-2/JT-3
  • Spindle Distance to Table (Max): 27-3/8"
  • Spindle Distance to Base: 46-1/4"
  • Table Size (L x W): 20 x 14"
  • Table Tilt (Deg.): 0 to 90 Degrees
  • Fence Size (L x H): 19-13/16" x 2-11/16"
  • Chuck Distance to Base: 43-13/32"
  • Chuck Distance to Table: 24-1/2"
  • Chuck Size: 5/8"
  • Column Diameter: 3-1/8"
  • Base Size: 13-3/8" x 20"
  • Motor Power: 1HP
  • Motor Phase: 1
  • Motor Voltage: 115/230V
  • Prewired Voltag: 115V
  • Motor Current: 15/7.5A

Features:

  • Mechanical variable speed allows for full range of speed with no belt changes.
  • 6" of quill travel with one revolution of the handle.
  • Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock.
  • Adjustable material stop makes repetitive actions accurate and quick.
  • A digital RPM readout allows user to optimize the spindle speed to the application.
  • Laser guides provide an accurate indication for tool point.
  • Keyless chuck makes bit changes easier.
  • Reversible handles can be mounted on either side of the machine for more comfortable working of the quill.
  • Two independent LED worklights eliminates shadows.
  • Work table can be rotated to a full 90 degree position.
  • Replaceable square table insert with leveling screws make it flush with the top of the table.
  • Oversize cast iron base for added stability.
  • Safety key prevents accidental starting.
