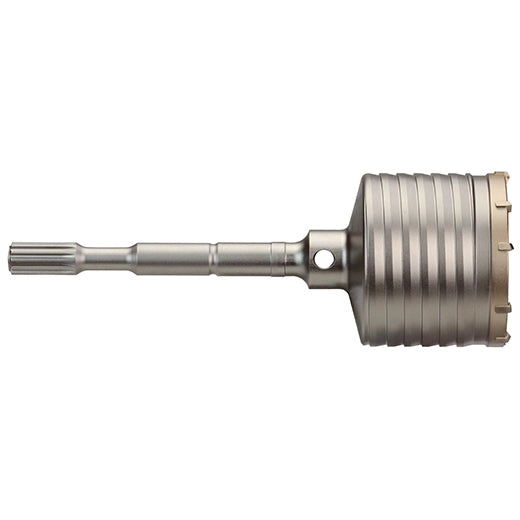

Milwaukee Spline One-Piece Core Bits

Milwaukee's One-Piece Carbide Tipped Core Bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Centering bit 48-20-5495 is included. Use drift key 48-20-5497 (not included) to remove centering bit from the onepiece core bit. The one-piece core bits are available in SDS Max or Spline shanks. They come in a variety of diameters ranging from 1-1/2" to 6" with overall lengths of 11-3/8" or 22" and a drilling depth of 3". The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The one-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.

Specifications:

• Material Composition: Carbide Tipped

Features:

• Asymmetrical and alternating teeth for faster material pulverization
• Optional: centering tip to reduce bit walking and create exact spot drilling
• Thick-wall core body for durability even in large hammers
• Remove centering bit with drift key 48-20-5497 (not included)
