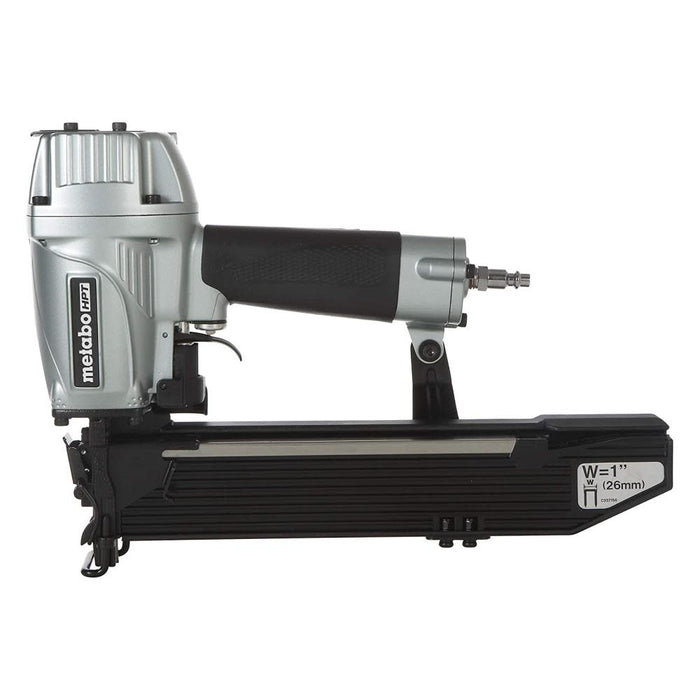

Metabo HPT N5024A2 1" 16 Gauge Wide Crown Stapler

Free Shipping (Contiguous US)

Sold out

Hitachi Power Tools is now Metabo HPT.
Same Tools. New Name.

The 16 Gauge 1 Inch Wide Crown Stapler (N5024A2) is ideal for lathing, sheathing, and insulation installation. Its lighter weight (only 4.7 lbs) and cylinder valve firing mechanism provide a powerful response and less user fatigue.

The high-grade aluminum magazine not only provides exceptional durability but also prevents jams caused by fastener overlap. The 360¡ adjustable rear exhaust has a built-in silencer to reduce noise pollution and direct air exhaust away from user or jobsite debris. The automatic dry-fire lock-out protects your workpiece by not allowing the tool to operate if there are 6 or less pins in the magazine

Standard Equipment:

  • N5024A2 16 Gauge Stapler
  • Safety Glasses


  • Fastener Type: Wide Crown, 1" Staple
  • Magazine Angle: Straight
  • Fastener Length Capacity: 1" - 2"
  • Staple Gauge: 16 Ga
  • Magazine Capacity: 157 Staples
  • Magazine Loading: Top
  • Air Inlet: 1/4"
  • Operating Pressure: 70 - 120 PSI
  • Actuation: Contact
  • Jam Clearing: Tool-Less
  • Depth Adjustment: Tool-Less
  • Driving System: Cylinder Valve
  • LxWxH: 14-11/64" x 3" x 9-13/16"
  • Weight: 4.7 lbs


  • AWARD: Rated the Pro Preferred Nailer for 7 years running (2014 - 2020) by Builder and Developer Magazine
  • FASTENERS: 16 Gauge, 1 In. Wide Crown Staples
  • LIGHTWEIGHT: At only 4.7 lbs and well-balanced allowing for ease of maneuverability and less user fatigue
  • CYLINDER VALVE: Firing mechanism provides a quick response and powerful driving- up to 3 staples per second
  • AIR DUSTER: Integrated air duster that is easily thumb operated to clear dust and debris
  • TRIGGER: Selective actuation allows for quick changes between sequential and contact nailing with the flip of a switch
  • TOOL-LESS DEPTH ADJUSTMENT: Depth adjustment to countersink or flush drive into a variety of materials
  • MAGAZINE: High capacity top loading magazine holds 150 staples, allowing for fewer replenishment and quick reloading
  • GRIP: Long-lasting elastomer grip surface for added comfort
  • WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
  • COMPLIANT: Safety standards for pneumatic nailers in the United States
