Makita XVJ05Z LXT 18 Volt Cordless Barrel Grip Jig Saw (Tool Only)

Makita Authorized Online Dealer

Add to Cart for Price


The Makita 18V LXT Brushless Jig Saw (XVJ05Z, tool only) combines precision and power with the efficiency of a brushless motor in a compact design. The XVJ05Z is engineered to deliver the power and performance of a corded jig saw but without the hassles of a cord. It is ideal for professional woodworkers, cabinetry makers, specialized residential construction workers and any pro-contractor seeking a best-in-class cordless jig saw. The XVJ05Z features an ergonomically designed barrel grip, which is closer to the work surface for more precise cuts.

The XVJ05Z has 3 orbital settings plus straight cutting for faster and more accurate cuts in a variety of materials. The variable 5-speed control dial (800-3,000 SPM) enables the user to match the speed of the tool to the application. In addition, the efficient brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge than similar non-brushless tools. Electronic controls efficiently use battery energy to match the changing demands of the application for increased power and speed when needed. And since there are no carbon brushes, the brushless motor runs cooler and more efficiently for longer life.

Convenience features include a Òtool-lessÓ blade change system that allows for faster blade installation and removal, On/Off button with a separate lock button for workpiece protection, and dual L.E.D. lights to illuminate the work area. The base bevels and locks from 0° to 45° left or right for more precise bevel cuts. It weighs only 5.0 lbs. with an 18V LXT 5.0Ah battery (sold separately).

Standard Equipment:

  • (2) 4-1/8" 9TPI Jig Saw Blade (792529-7-1)
  • (2) Jig Saw Blade, T Shank, HSS, 3" x 24TPI (792473-8-1)
  • (2) Jig Saw Blade, T Shank, HCS, 4-1/8" x 9TPI (792729-9-1)
  • (1) Dust Extracting Attachment, XVJ04 (413F05-1)
  • (1) Dust Cover, XVJ04 (458191-5)

Optional Accessories:


  • Rating: 18.0 Volt
  • No-load SPM: 800 to 3,000
  • Stroke Length: 7/8"
  • Max Capacities at 90°...
    Steel: 3/8"
    Wood: 5-5/16"
  • Length: 10-1/4"
  • Weight: 5.0 lbs w/Battery

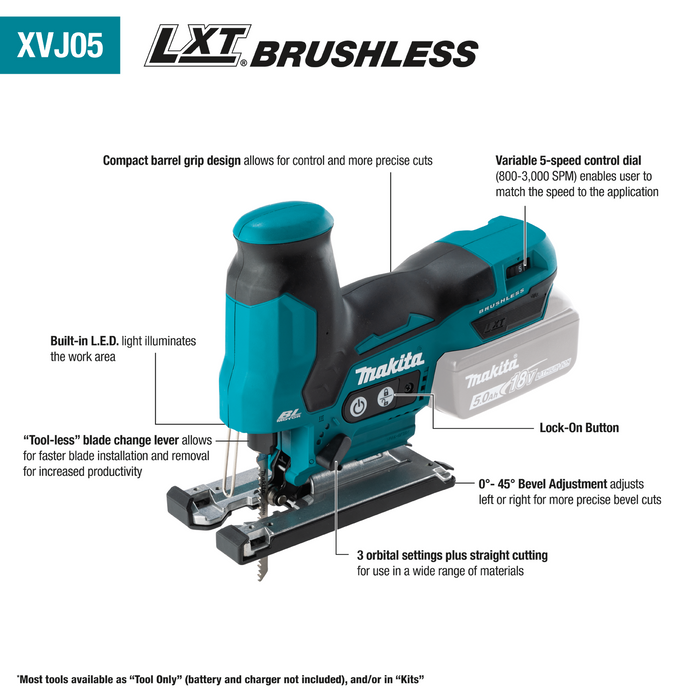

  • Compact barrel grip design allows for control and more precise cuts
  • Makita-built brushless variable speed motor delivers 800-3,000 strokes per minute for faster and more efficient cutting
  • Cuts up to 135 ft. of 1" MDF on a single charge using 5.0Ah battery BL1850B (battery not included)
  • Variable 5-speed control dial (800-3,000 SPM) enables user to match the speed to the application
  • 3 orbital settings plus straight cutting for use in a wide range of materials
  • Base bevels and locks from 0°- 45° left or right for more precise bevel cuts
  • Built-in L.E.D. light illuminates the work area
  • L.E.D. light with light reduction function to reduce glare when tool is being used upside down
  • "Tool-less" blade change lever allows for faster blade installation and removal for increased productivity
  • On/Off button with separate lock button for work piece protection
  • Soft no-load mode creates a more accurate starting cut by slowing increasing the speed of the blade when it engages the material
  • Built-in dust blower clears the line of cut for increased accuracy
  • Electric brake for maximum productivity
  • Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
  • 3-year limited warranty
  • Battery and charger not included
  • Only use genuine Makita batteries and chargers
