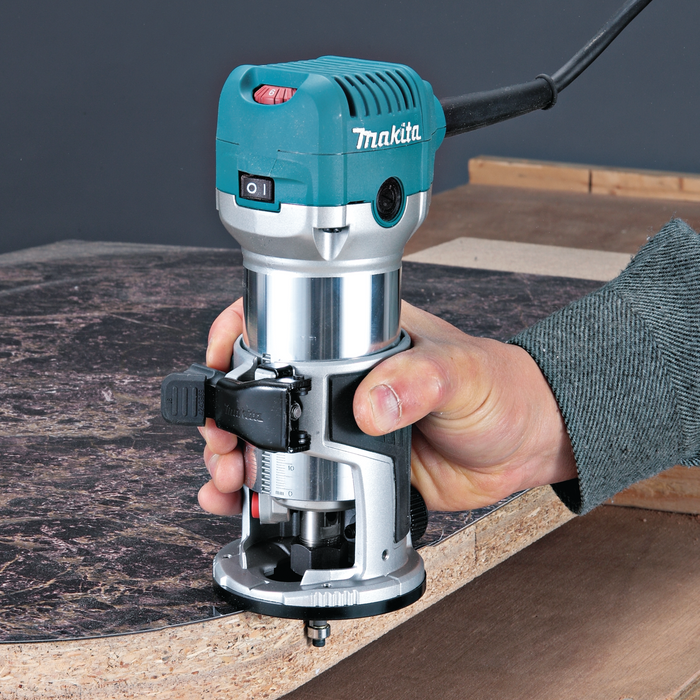

Makita RT0701CX7 Compact Router Kit

1-1/4 HP Variable Speed

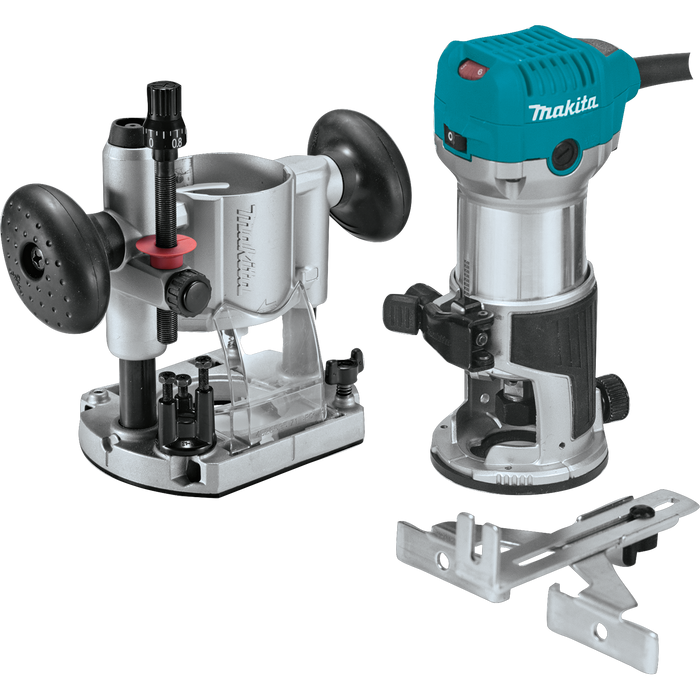

Standard Equipment:

• RT0700C Router Motor
• 1/4" Collet (763637-1)
• Fixed base (195560-6)
• Plunge base (195563-0)
• Straight guide (122965-7)
• Wrench 13mm (781039-9)
• Wrench 22mm (781011-1)

Specifications:

• Rating: 115 V AC / DC
• Amperage: 6.5
• Max Horsepower: 1-1/4
• No-load RPM: 10,000-30,000
• Collet Capacity: 1/4"
• Height: 7-7/8"
• Weight: 3.9 lbs

Features:

• Variable speed control dial (10,000 - 30,000 RPM) enables user to match the speed to the application.
• Smooth rack-and-pinion fine depth adjustment system for more precise settings.
• Slim and ergonomically designed body for increased comfort and control.
• Quick release cam lock system for easy depth adjustments and base removal/installation.
• Electronic speed control maintains constant speed under load.
• Soft start feature for smooth start ups.
• Fixed base accepts industry standard template guides for convenience.
• High visibility base design for improved handling and performance.
• Base can be removed quickly to install other bases.
• Heavy duty aluminum motor housing engineered for increased durability.
• Shaft lock for quick and easy bit changes.
• Durable flat top design for added convenience when changing bits.
• Non-marring high-durability base insert for increased workpiece protection.
• Easy-to-read depth scales.
• Uses 1/4" shank router bits.
• Double insulated.

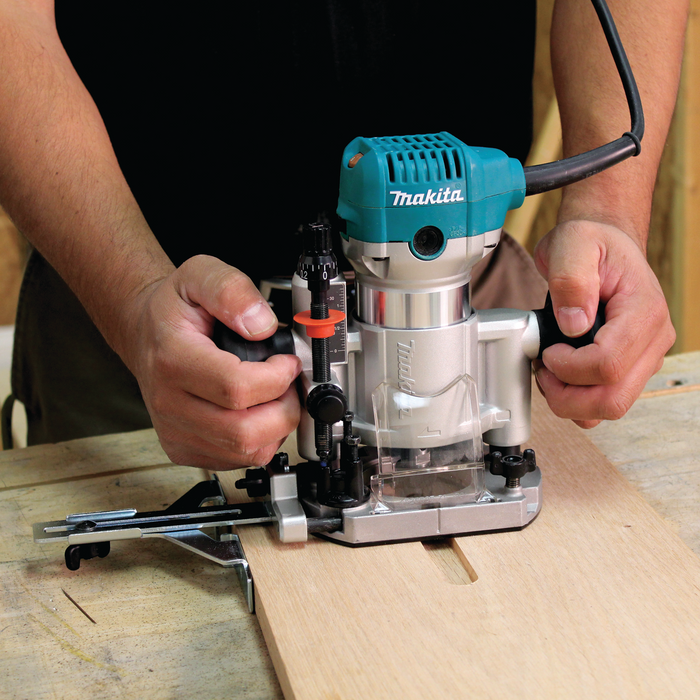

• Plunge Base.
• 0 - 1-3/8 plunge depth capacity for easy penetration into workpiece.
• Easy-to-use fine depth adjustment with 3 preset depth stops for added precision.
• Ideal for routing small profiles, dovetailing, door hinges and more.
• Conveniently located plunge lock lever for operator convenience.
• Removable clear plastic shield engineered to reduce airborne debris.
• Sub-base accepts industry standard template guides for convenience.
• Fits compact routers models RT0700C and RT0701C.
