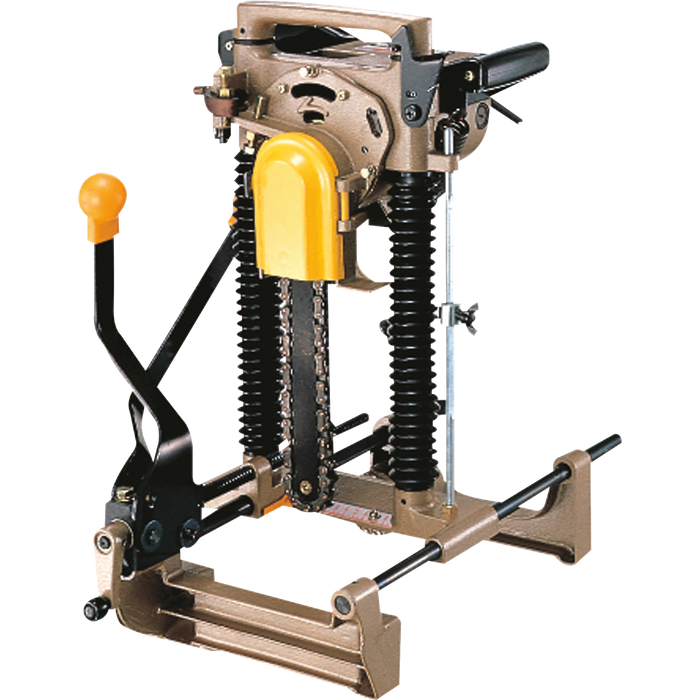

Makita 7104L Chain Mortiser


Makita Authorized Online Dealer
Free Shipping (Contiguous US)
$1,769.00
SKU MAKI7104L

Standard Equipment:

  • 7104L Chain Mortiser
  • 21/32" Cutter Chain
  • Wrench
  • 100 cc Oil Supply

Specifications:

  • Amperage: 12.0
  • No-load RPM: 3,200
  • Capacities...
    Max Hole Width: 5-1/8"
    Max Hole Width: 7-1/4"
    Max Hole Depth: 6-1/8"
  • Size: 15-1/4"x 11-3/4"x 20-1/4"
  • Weight: 37.4 lbs

Features:

  • The 7104L is an innovative power tool that notches or cuts through-holes in thick wood stock quickly, neatly and accurately.
  • Perfect for timber framing and log home building.
  • Extremely portable at only 37.4 lbs.
  • Cuts lap joints up to 5-1/8".
  • Large adjustable vise for attaching firmly onto logs 3-1/8" to 12-1/8" thick.
  • Sliding rear clamp adjustable to desired width with a quick adjust tension knob.
  • Clamp tension lever for a firm hold on log.
  • Plunge depth adustment in 1/8" increments.
  • Cutting line indication plate.
  • Adjust knob for re-adjusting position of chain across the log.
  • Quick horizontal chain lever for widening holes.
  • Chain tension adjustment cover with snap action.
  • Professional 12 AMP motor.
  • Razor sharp chain to quickly notch or cut holes.
  • Durable plastic boot protects twin steel rails.
  • Externally accessible carbon brushes for easy serviceability.
  • The 7104L chain mortiser has a built-in carrying handle for ease of transportation.
