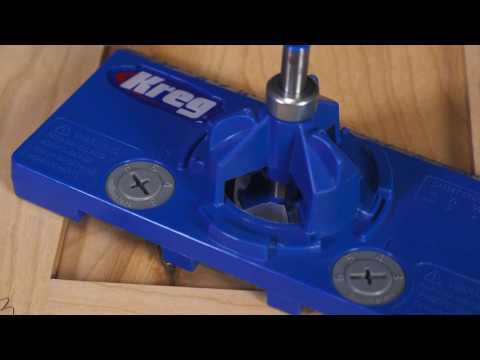

Kreg KHI-HINGE Concealed Hinge Jig

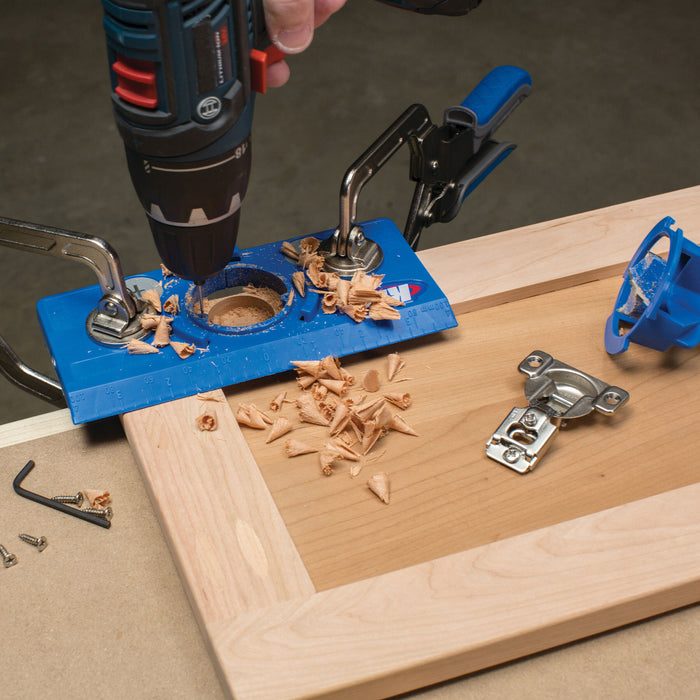

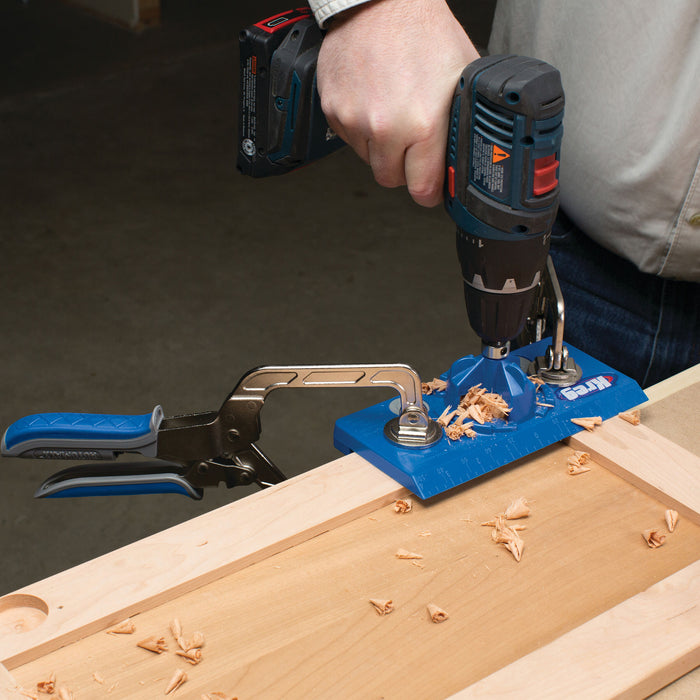

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped bit.

Standard Equipment:

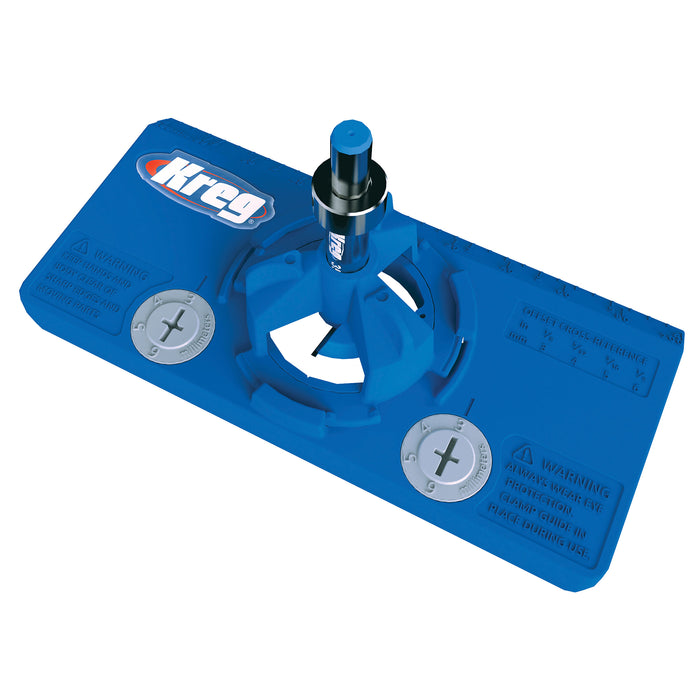

  • (1) Jig Base with Indexing Cams
  • (1) Drill Guide
  • (1) 35mm Carbide-Tipped Drill Bit
  • (1) Stop Collar with Hex Wrench


  • Capacity: Works with 3mm, 4mm, 5mm, 6mm Hinge Offsets
  • Capacity: 2" (50mm) to unlimited hinge positioning from door end


  • For installing 35mm cup-style concealed hinges
  • Works with any hand drill
  • Four-cutter carbide-tipped bit with stop collar
