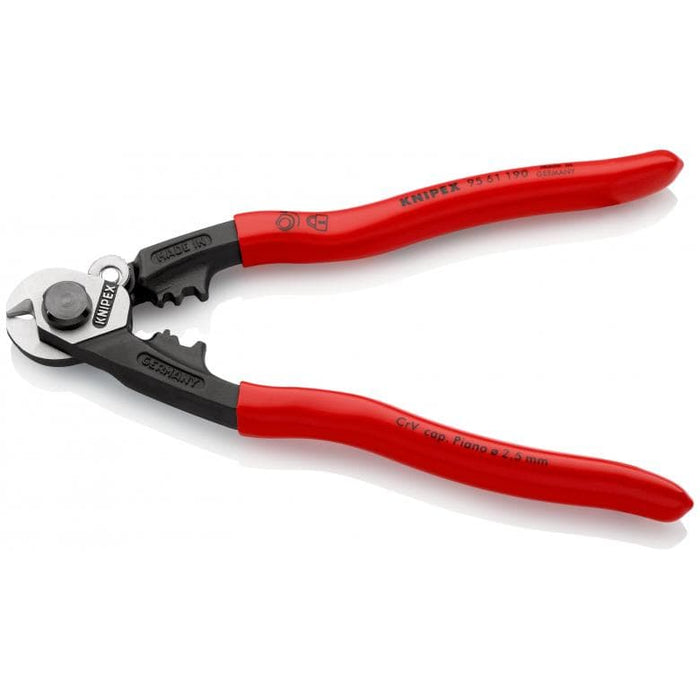

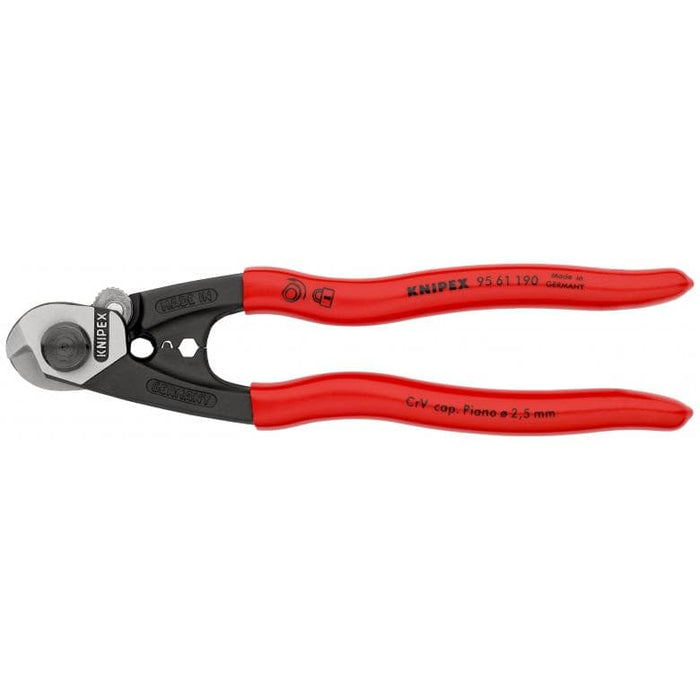

Knipex 9561190 Wire Rope Cutter


Typical application areas of the Knipex wire rope cutters include the following: the broken clutch cable of the classic car is replicated - no original parts are available. New handbrake cables on truck trailers are produced from cable sold by the metre. These wire rope cutters are the ideal tool in such cases. With cutting capacities of up to 7 mm in the case of stranded Cu cable and up to 5 mm with hard wire rope, they are suitable for all work in workshops and for installation work.

  • 9561190 Wire Rope Cutter


  • Handles: Plastic Coated
  • Dimensions: 190 x 60 x 20 mm
  • Cutting Capacity copper cable, multiple-stranded: 10 mm_
  • Cutting Capacity copper cable, multiple-stranded (diameter): 7.0 mm
  • Cutting Capacity copper cable, fine-stranded (diameter): 6.0 mm
  • Cutting capacities wire rope (diameter): 5.0 mm
  • Cutting capacities medium hard wire (diameter): 4.0 mm
  • Cutting capacities piano wire (diameter): 2.5 mm
  • Cutting capacites iron (diameter): 4 mm
  • Weight: 0.310 kg

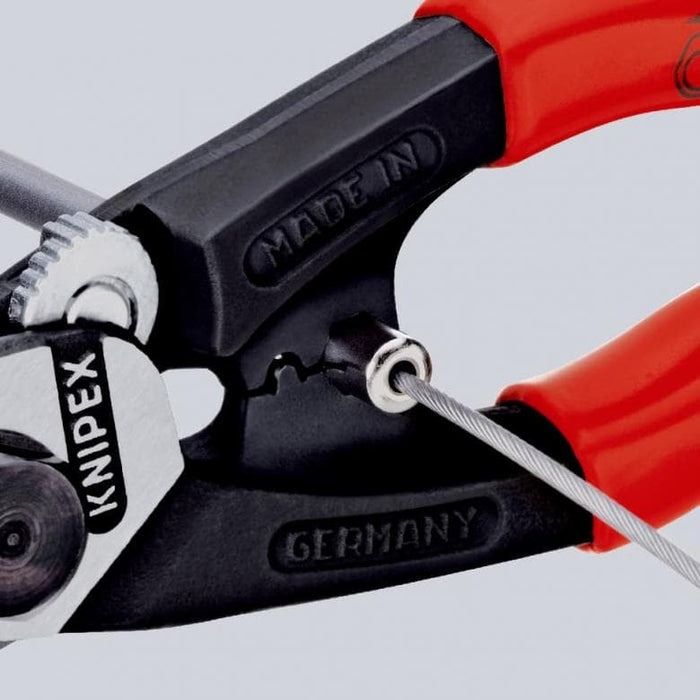

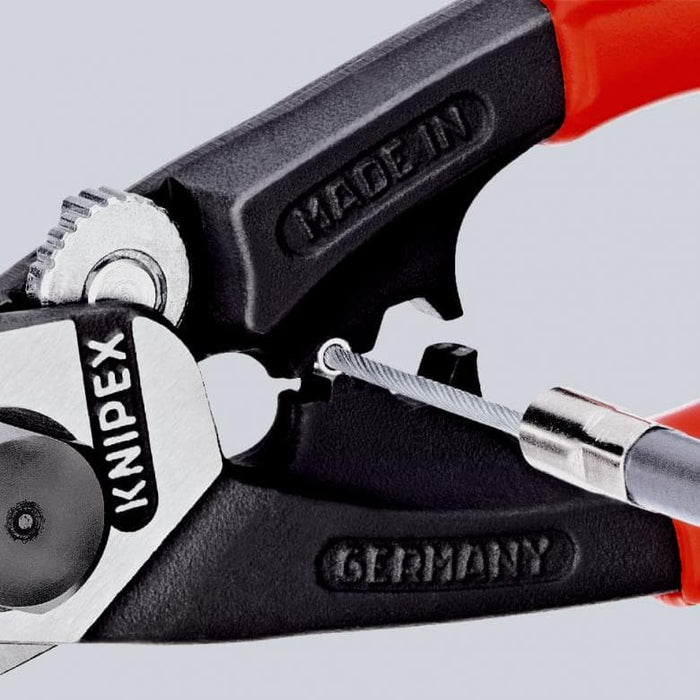

  • With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables
  • Comfortable work thanks to handy, slim design and internal opening spring
  • Bolted joint for precise blade guidance, re-adjustable
  • High leverage for reduced effort
  • Cutting edge hardness approx. 64 HRC
  • Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened
