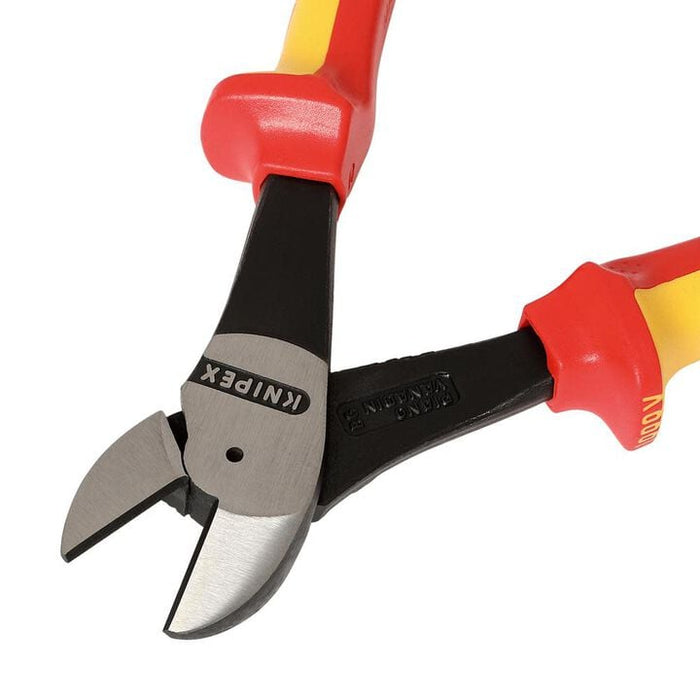

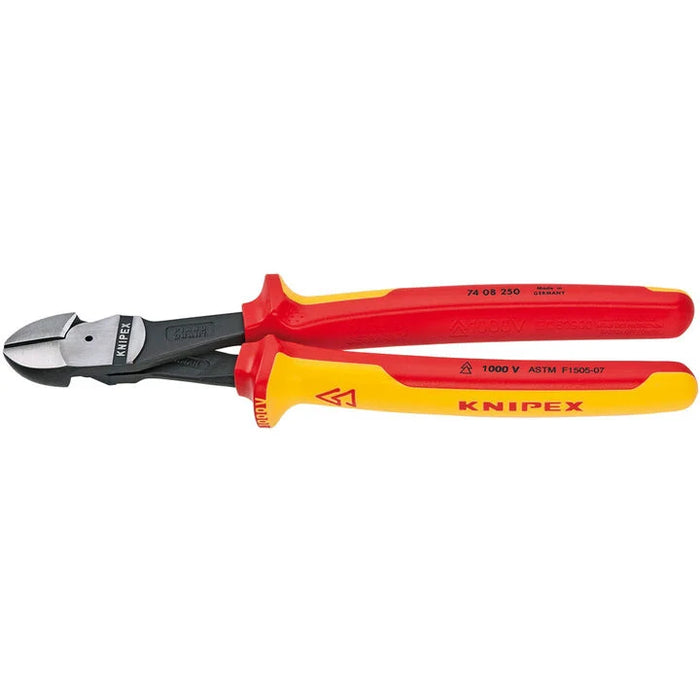

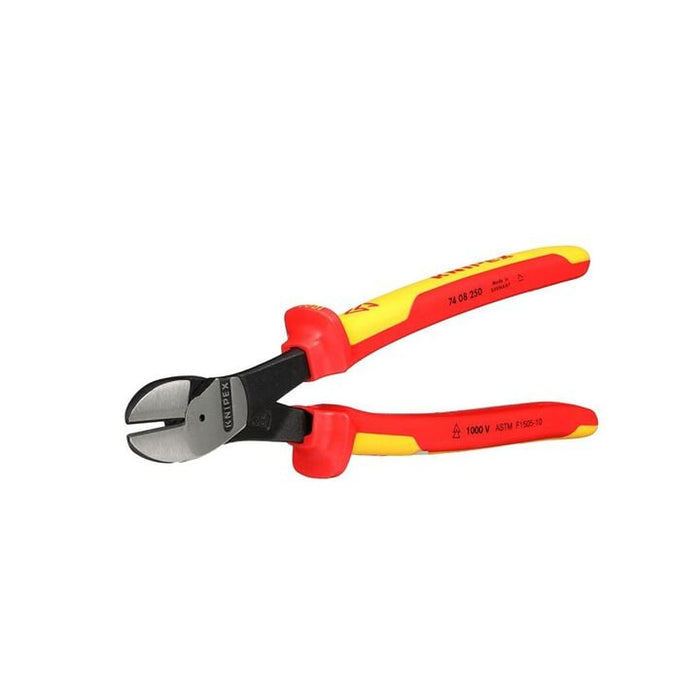

Knipex 74 08 25 10" High Leverage Diagonal Cutters

1000V Insulated

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 01 250 high leverage diagonal cutters are highly valued especially by craftsmen and industrial mechanics.

The version with a length of 250 mm is frequently used on building sites and in manufacturing because it can cut hard materials such as piano wire up to 3.0 ¯ mm effortlessly.

Standard Equipment:

• 10" High Leverage Diagonal Cutters (74 08 25)

Specifications:

• Country of Origin: Germany
• Length: 10"
• Width: 2-3/8"
• Height: 1-3/16"
• Weight: 1.025 lbs.
• 1000 Volt Insulated: Yes
• ESD Indicator: No
• Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• Joint Type: Forged-in axle
• Cutting Capacity - Piano Wire: 1/8"
• Cutting Capacity - Hard Wire (Steel Wire): 9/64"
• Cutting Capacity - Medium Hard Wire (Nail): 3/16"
• Cutting Edge Shape: Bevel

Features:

• 20% less effort required compared to conventional diagonal cutters of the same length
• Forged-on axle for heavy-duty work
• For very tough, continuous use
• 1000V multi-component grips, ASTM F1505-tested
• High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
• 10" length suitable for copper conductors up to 16 mm_ and aluminum conductors up to 35 mm_
• Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
