Jet 716300 JDP-17 Drill Press


Free Shipping (Contiguous US)

For pricing and availability call us at 860-233-8213

Please Note: Available for In-Store Pickup Only
SKU JET716300

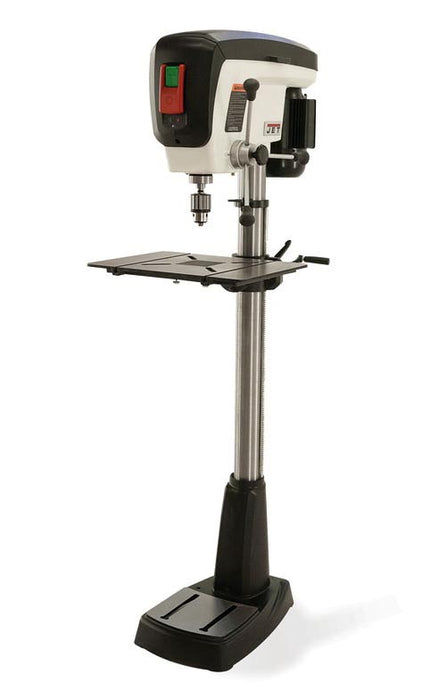

17" Drill Press

Introducing the new JET JDP-17, 17" Drill Press. From a full 5" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

Standard Equipment:

  • JDP-17 Drill Press - 716300
  • Drill Chuck
  • Chuck Key

Specifications:

  • Swing: 16-7/8"
  • Spindle Travel: 5"
  • Number of Spindle Speeds: 16
  • Spindle Speed: 210 to 3,500 RPM
  • Table Size (L x W): 14" x 19"
  • Table Tilt: 90° R & L
  • Chuck Size: 5/8"
  • Column Diameter: 3-5/32"
  • Base Size: 20" x 12-5/8"
  • Motor Power: 3/4 HP
  • Motor Phase: 1
  • Motor Voltage: 115V
  • Motor Current: 9A
  • Weight: 187 lbs

Features:

  • Spindle travels a full 5” with one revolution of the handle.
  • Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
  • One-handed belt tensioning allows for rapid speed changes.
  • Power switch features a safety key and large, paddle-style off button.
  • Integrated depth stop makes repetitive drilling quick and easy.
