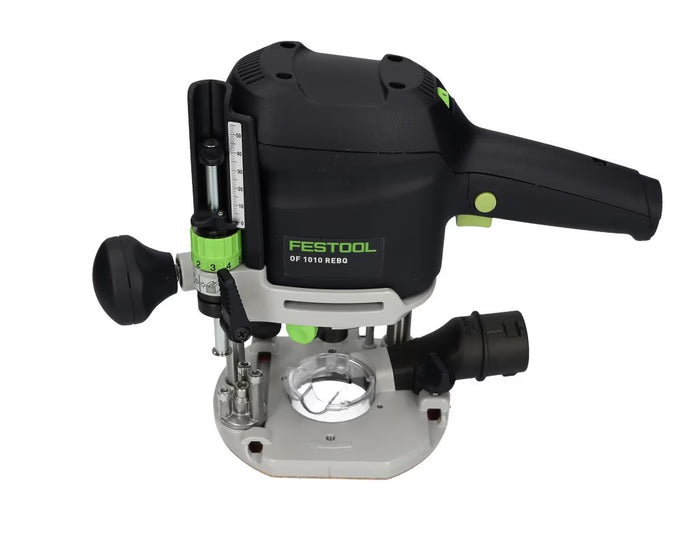

Festool 578017 OF 1010 REBQ-Plus Router

Simply brilliant.

The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

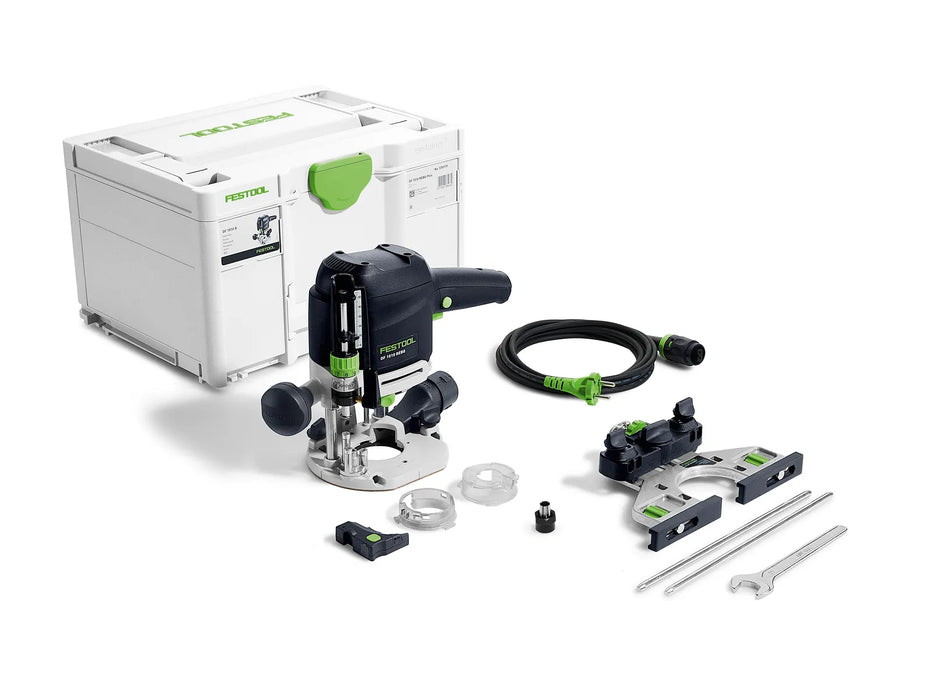

Standard Equipment:

• OF 1010 REBQ-Plus Router (578017)
• Edge Guide (SA-OF 1010/MFK)
• Light Module (LM-OF 1010 R)
• Collet (SZ-D 8/OF 1010)
• Collet (SZ-D 6.35/OF 1010)
• Collet Wrench (WAF 19)
• Plug-It Power Cord (SJO 16 AWG-4)
• Systainer3 (SYS3 M 237)

Optional Accessories:

• 578047 ZS-OF 1010 I Accessory Kit

Specifications:

• Power Rating: 1010 Watt
• No-Load Speed: 9,500 - 23,000 RPM
• Routing Stroke: 2-1/8"
• Fine Depth Adjustment Range: 5/16"
• Collet Dia Range: 1/4" - 5/16"
• Weight: 7.06 lbs

Features:

• Ergonomic: Thanks to the compact design and low weight.
• Unobstructed view: Clearly visible routing area

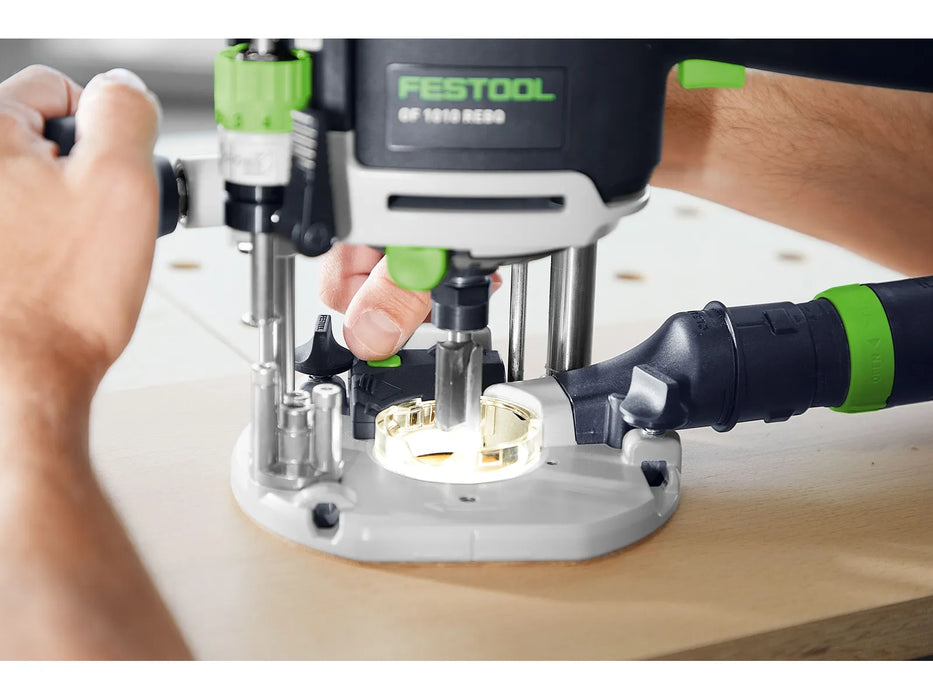

• Well lit: Thanks to the rechargeable LED work light in the base
• Quick: Quick and easy bit changes
• Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm)
• Steady: Torsionally rigid router base due to guide columns on both sides

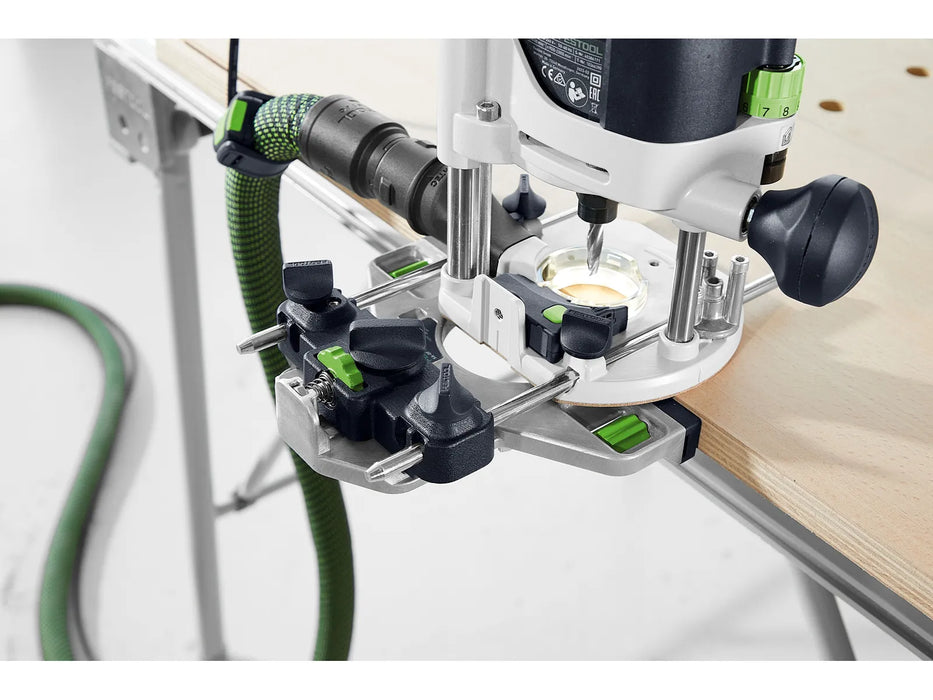

• Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces
• Smart: Designed with restart protection
• Material specific: MMC electronics for optimal work and temperature monitoring
• Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters

Applications:

• Rounding, chamfering, rabbetting and profiling edges
• Recessing metal fittings
• Grooving rear panels, recessing dovetail or routing plasterboard with the guide system (edging technology)
• Producing rows of holes in cabinets using the hole series system LR 32
• Guided routing
