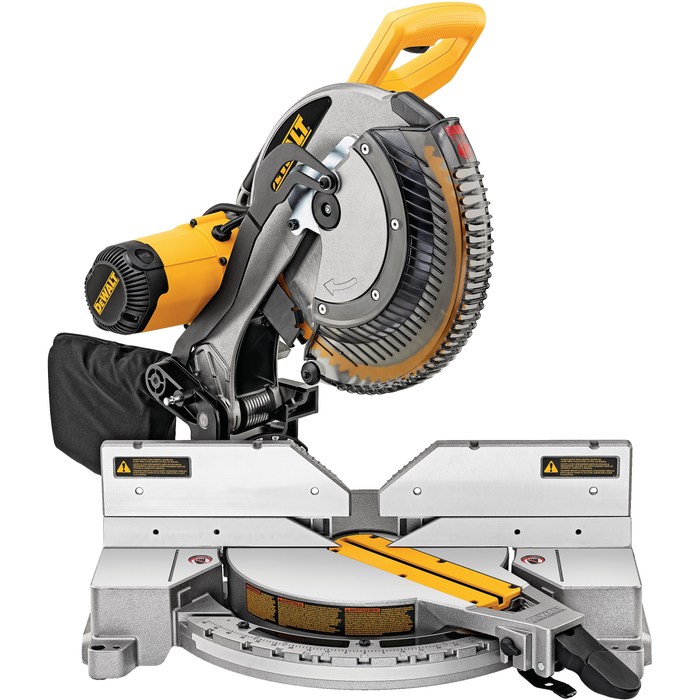

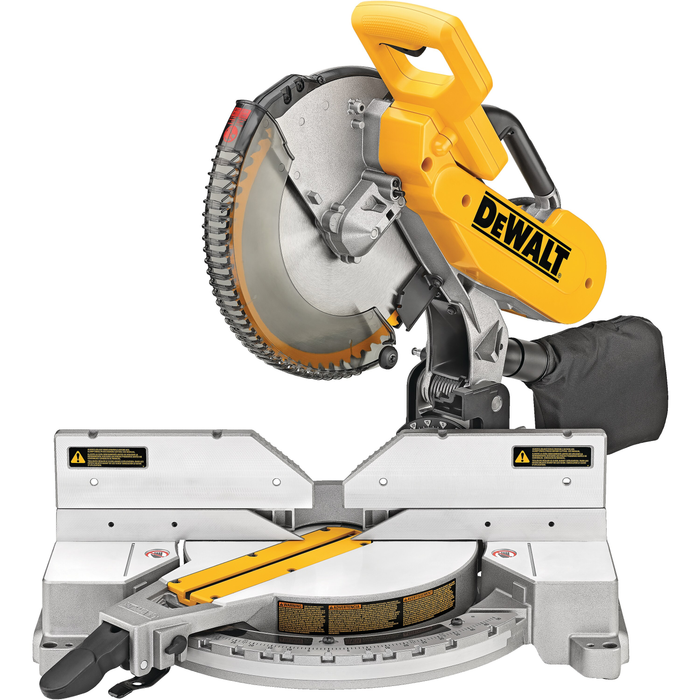

DeWalt DW716 12" Dual-Bevel Compound Miter Saw


Free Shipping (Contiguous US)
$389.00
SKU BLACDW716

Standard Equipment:

  • DW716 Miter Saw
  • Carbide Blade
  • Dust Bag
  • Blade Wrench

Optional Accessories:

Specifications:

  • Rating: 120V AC
  • Amperage: 15.0
  • No-load RPM: 3,600
  • Blade Diameter: 12"
  • Round Arbor Diameter: 5/8" or 1"
  • 90° Cross-cut Capacity...
    Dimensional Lumber: 2"x 8"
    Max Width: 2"x 8"
  • 45° Miter Capacity:
    Dimensional Lumber: 2"x 8"
    Max Height: 4"x 6"
    Max Width: 2"x 6"
  • Vertical Capacity...
    Baseboard Against Fence: 6-1/2"
    Crown Molding Vert Nested: 6-5/8"
  • Horizontal Capacity...
    Baseboard Lying Flat: 8"
    Crown Molding Lying Flat: 6-1/2"
  • Weight: 44.0 lbs

Features:

  • 15.0 Amp, 3,600 RPM motor provides extended power and durability.
  • Adjustable stainless steel miter detent plate with 11 positive stops delivers repeatable accuracy and worksite durability.
  • Precise Miter System and Machined Base Fence Support deliver increased cutting accuracy.
  • Tall sliding fences support crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts.
  • Innovative gearbox and belt-drive design delivers increased vertical cutting capacity.
  • Double bevel design allows saw to bevel left and right 0° to 48° with positive stops at 0°, 33.9°, 45° and 48° both left and right allowing user to flip the saw not the material.
  • Exclusive Back Fence Design delivers ability to cut 2 x 10 dimensional lumber at 90° and 2 x 8 at 45°.
  • 0 to 50° left and right miter capacity for greater versatility.
  • Lightweight (44 lbs), head lock-down pin, and built-in carrying handle for increased portability.
  • Cam lock miter handle with detent override deliver quick and accurate miter angles.
