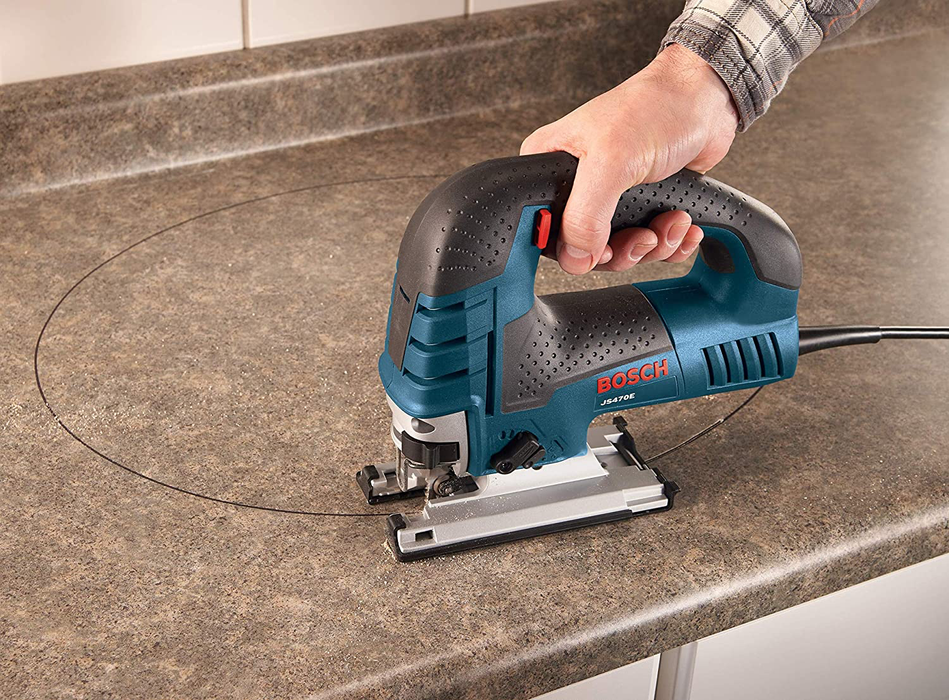

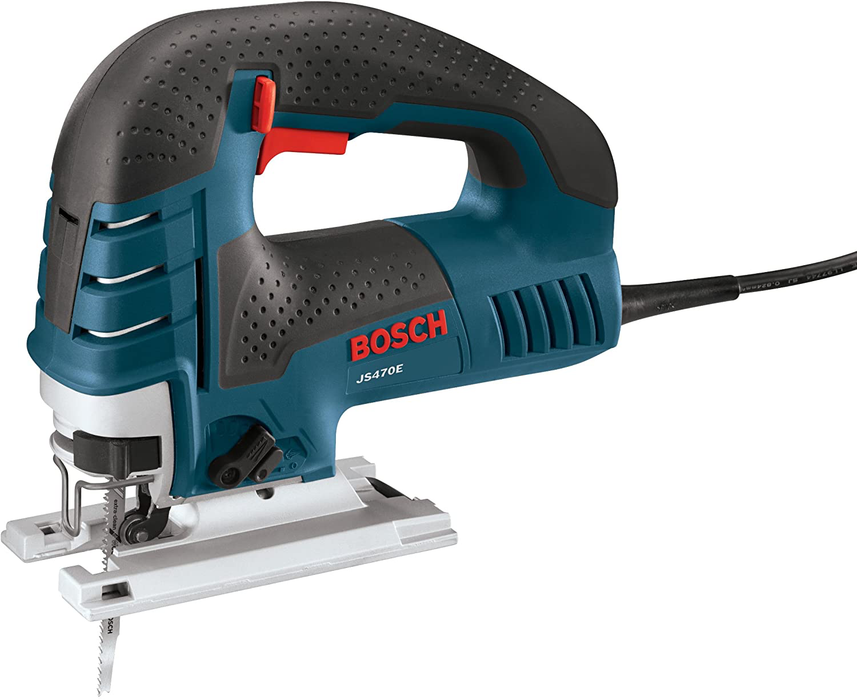

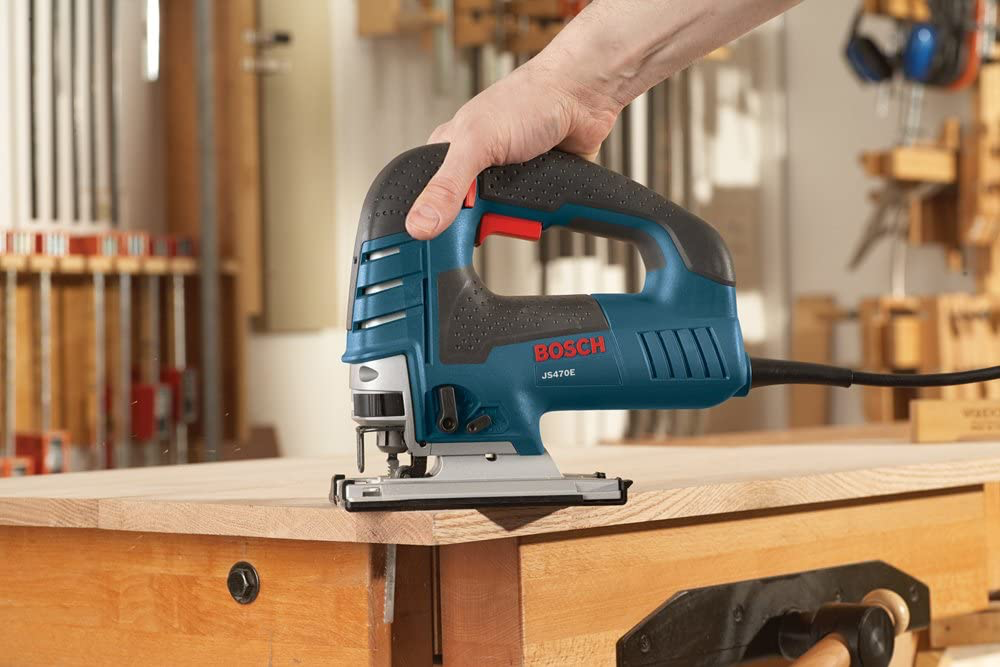

Bosch JS470E Jig Saw


Top Handle Kit

The JS470E top-handle jigsaw delivers 7.0 amps of power - the highest jig saw power rating on the market. Constant Response circuitry maintains the desired speed for consistent performance, and a precision-machined plunging system and low-vibration design contribute to the cutting accuracy and smooth operation.

Standard Equipment:

  • JS470E Jigsaw
  • 1 Jig Saw Blade
  • Anti-Splinter Insert
  • No-marring Overshoe
  • Carrying Case

Optional Accessories:


  • Rating: 120V AC
  • Amperage: 7.0
  • Stroke Length: 1"
  • No-load SPM: 500 to 2,800
  • Cutting Capacities...
    Soft Wood: 5-7/8"
    Mild Steel: 3/8"
    Aluminum: 7/8"
  • Max Bevel Cut: 45 Degrees
  • Weight: 5.9 lbs
  • Length: 10"


  • Aluminum gearbox with insulated cover.
  • Toolless Blade-Change System - Fast insertion, blade ejection lever eliminates need to touch hot blade. Most secure jigsaw clamping system.
  • Ambidextrous lock-on button - For steady long cuts and user comfort and control.
  • Variable speed - Dial sets maximum speed and accelerator trigger controls operating speed.
  • Large, sturdy die-cast foot with steel insert and on-board bevel wrench.
  • Powerful 7.0 Amp Jigsaw - Top jigsaw amp rating.
  • Exclusive multi-directional blade clamp provides superior grip of T-shank blades.
  • Internal Precision Control - Precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation.
  • Constant Response circuitry - Maintains desired speed for consistent performance and precision.
  • Four orbital-action settings -Different blade strokes for smooth to aggressive cuts.
  • Adjustable dust blower keeps cutting line clear.
  • Ergonomic top handle with soft-grip areas for solid, comfortable grip.
