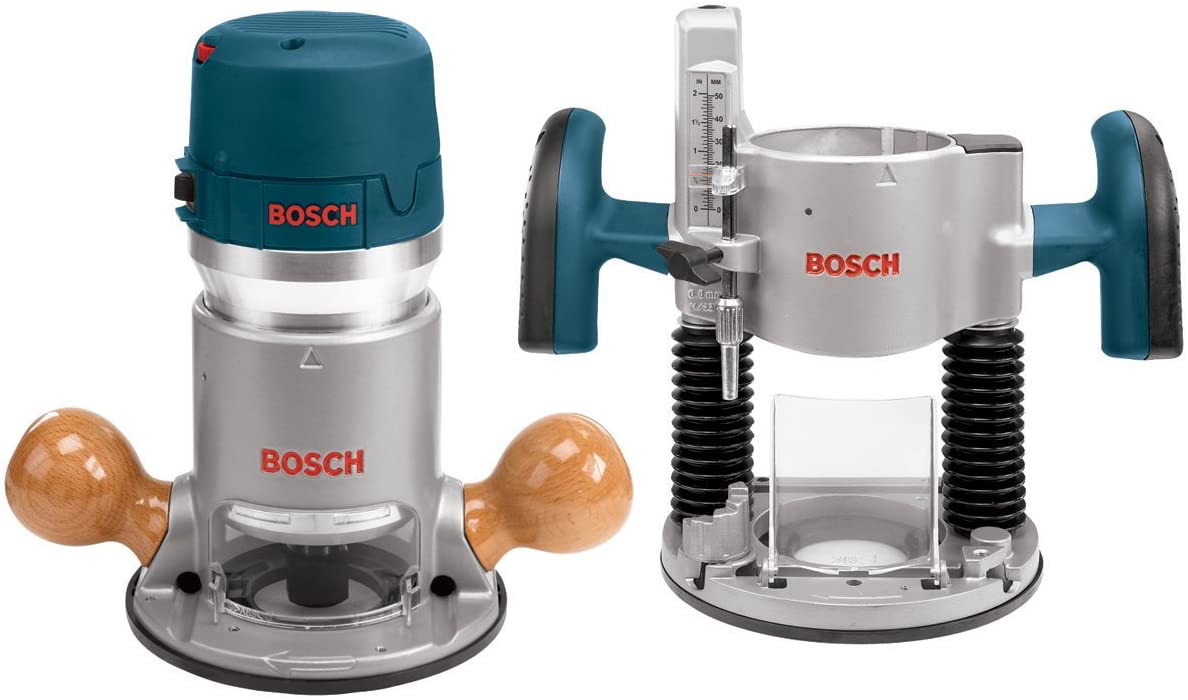

Bosch 1617EVSPK Router Combo Kit


Free Shipping (Contiguous US)
$239.00
SKU BOSC1617EVSPK

2-1/4 HP Combination Plunge & Fixed-Base Router Pack

The 1617EVSK is the best of both worlds - a plunge and fixed base router kit. A versatile kit that serves a broad range of routing applications.

Standard Equipment:

  • 1617EVS Motor
  • Plunge Base RA1166
  • Fixed Base RA1161
  • 1/4" & 1/2" Collet Chuck
  • 16mm Shaft Wrench
  • 24mm Collet Nut Wrench
  • Fixed Base Chip Shield
  • Plunge Base Chip Shield
  • Carrying Case

Specifications:

  • Ratings: 120V AC
  • Amperage: 12
  • Horsepower: 2-1/4
  • No-load RPM: 8,000 - 25,000
  • Collet Capacity: 1/4", 3/8", 1/2"
  • Base Diameter: 6"
  • Weight: 7.5 lbs

Features:

  • 2.25 HP/ 12 AMP Motor 8,000-25,000 RPM.
  • Variable speed dial for matching speed to workpiece and task.
  • Soft-start - Reduces start-up torque.
  • Constant-Response Circuitry maintains constant speed under load, provides overload protection.
  • Quick clamp system on both bases for fast tool-free conversion - Move motor from base to base with ease.
  • Precision Centering Design makes it easy to keep bit on intended cutline when using jigs, templets, dovetail fixtures and similar guidance devices.
  • Microfine bit depth adjustment system on both bases for fast, precise bit depth adjustment.
  • Wide base openings and 2" subbase openings accepts larger bits & provides better visibility.
  • Right or left switch location for user preference and consistency (motor does not rotate during depth adjustment).
  • Plunge base has contoured soft grip handles for enhanced control and comfort at all plunge depths.
  • Tool-free templet guide adapter system for fast and easy templet guide changes.
  • Double insulated.
  • Now includes RA1161 Fixed-Base with system for adjusting bit height from above a router table.
  • Fixed base has threaded holes for mounting to router table positioned in Bosch 4-hole pattern and common 3-hole pattern..
  • Rugged carrying case has compartments for all included items.
  • Power Switch includes dust-sealed power switch.
