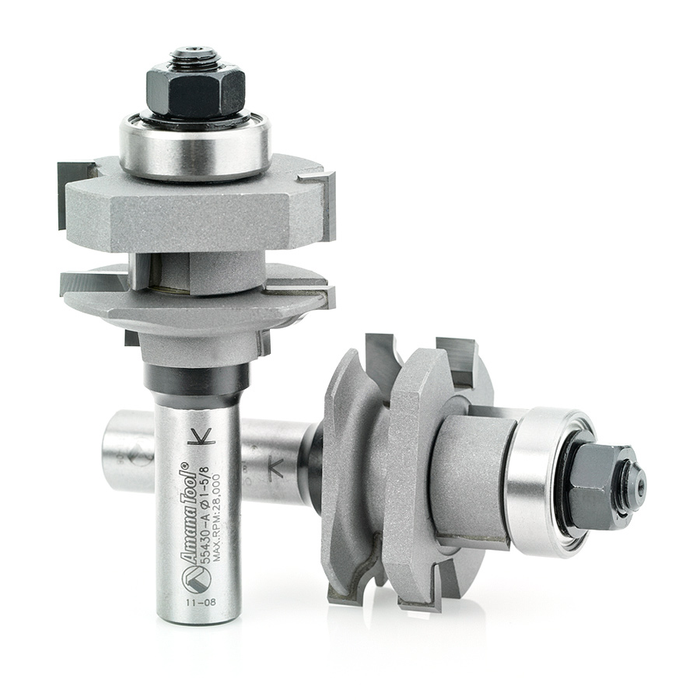

Amana 55430 Two Piece Ogee Stile & Rail Router Bit


Door Making Router Bits: Two Piece Stile & Rail Router Bits, Carbide Tipped: 1-5/8" Dia x 1-1/16" x 1/4" Shank

These sets include two trim cutters for stock 7/8" through 1" in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8" thick.)

Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8" to 1" thick, a template must to used.

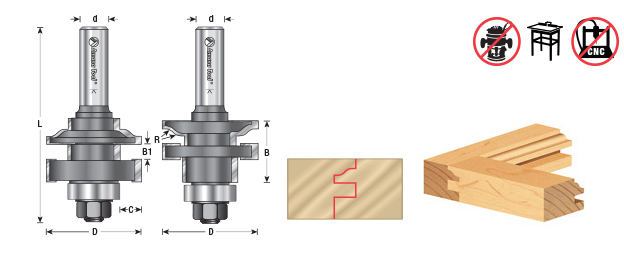

Standard Equipment:

  • 55430 Two Piece Ogee Stile & Rail Router Bit


  • Diameter (D): 1-5/8"
  • Radius (R): 1/4"
  • Cutting Height (B): 1-1/16"
  • Shank (d): 1/2"
  • C: 3/8"
  • Overall Length (L): 3-5/16"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
