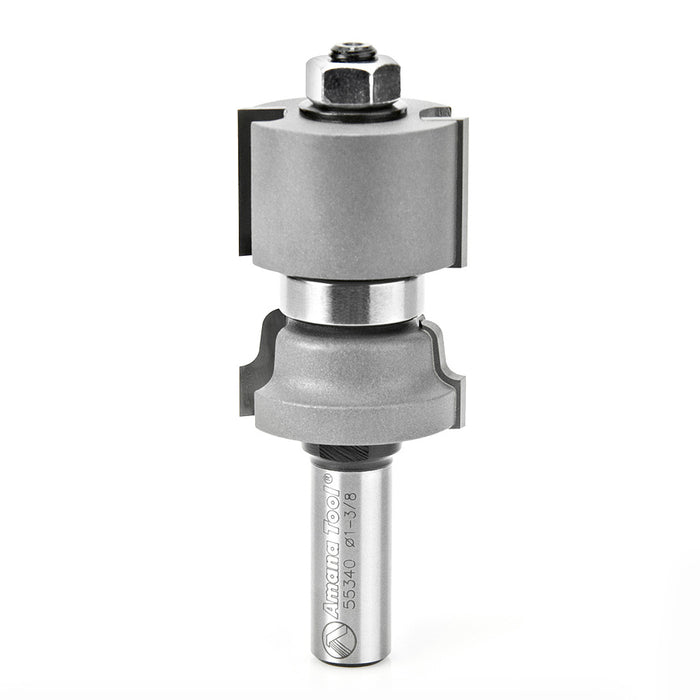

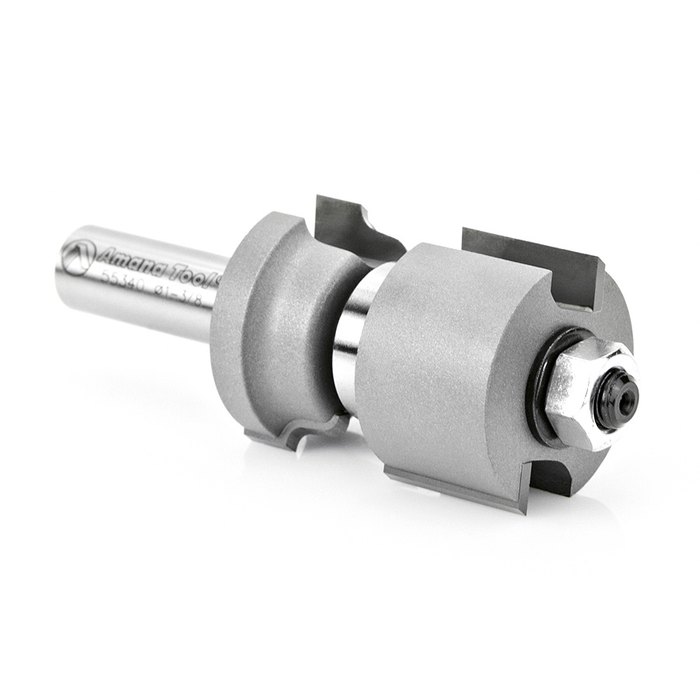

Amana 55340 Reversible Ogee Window Sash & Rail Router Bit




$159.00
SKU AMAN55340

Jointing Router Bits: Ogee Window Sash & Rail Router Bits, Carbide Tipped: 1/8" Radius x 1-9/64" Dia x 43/64" to 1-3/16" x 1/2" Shank

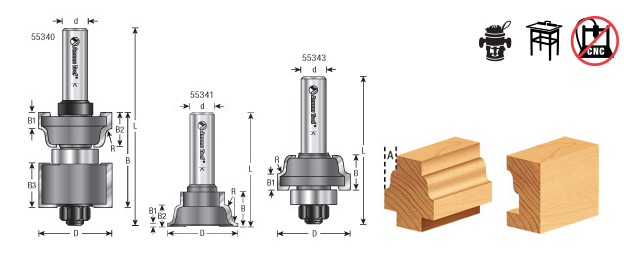

This reversible assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8" and 1-3/4" thick. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile cutter and replace rabbet cutter with spacers to rout the copes. Use in a table-mounted router.

Standard Equipment:

  • 55340 Reversible Ogee Window Sash & Rail Router Bit

Specifications:

  • Diameter (D): 1-1/8"
  • Radius (R): 1/8"
  • Cut Depth (A): 1/4"
  • Cutting Height (B): 1-55/64"
  • Shank (d): 1/2"
  • B1: 5/16"
  • B2: 43/64"
  • B3: 7/8"
  • Overall Length (L): 3-3/4"

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
