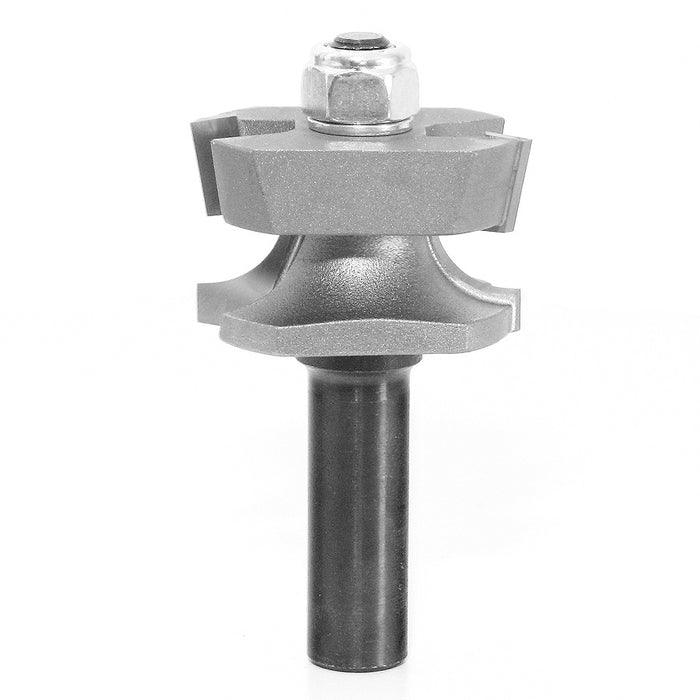

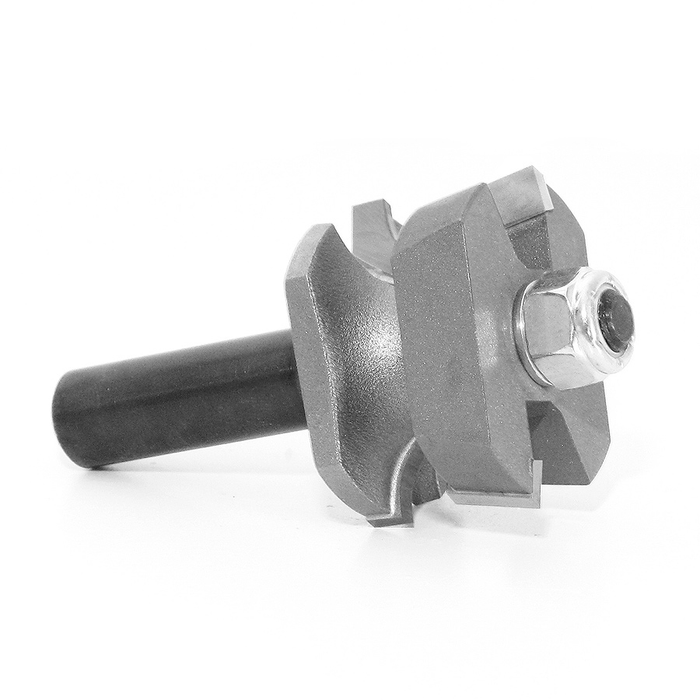

Amana 55300 Door Lip Assembly


Door Making Router Bits: Finger Grip & Door Lip Router Bits, Carbide Tipped: 3/8" Rad x 10° x 1-9/16" Dia x 1" x 1/2" Shank

Mill the edges of doors and drawer fronts with this assembly, rounding the show edge and simultaneously forming a rabbet with a tapered shoulder on the back edge. Works on straight stock from 5/8" through 1" in thickness. Must be used in a table-mounted router.

Standard Equipment:

  • 55300 Door Lip Assembly

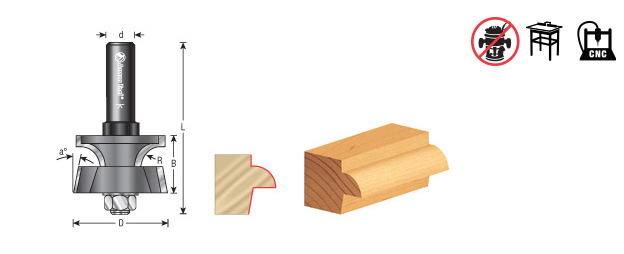

  • Radius (R): 3/8"
  • Angle (a°): 10°
  • Diameter (D): 1-9/16"
  • Cutting Height (B): 1"
  • Shank (d): 1/2"
  • Overall Length (L): 3"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
