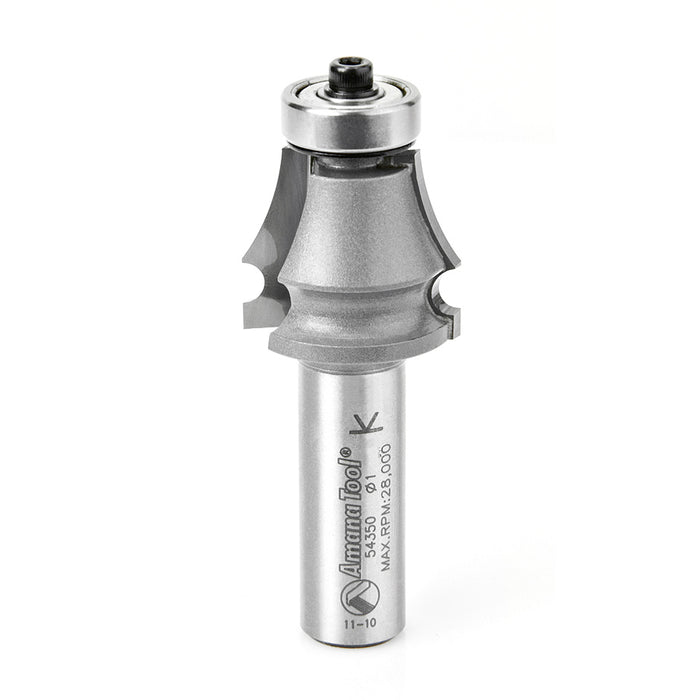

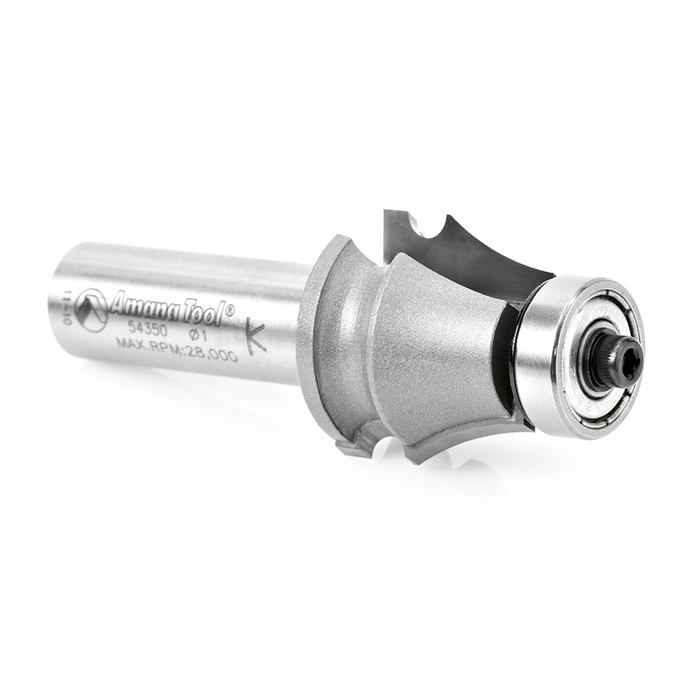

Amana 54350 Drawing Line Router Bits

Profiling Router Bits: Drawing Line Router Bits, Carbide Tipped: 1" x 3/32" Rad x 1" Dia x 7/8" x 1/2" Shank

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Standard Equipment:

• 54350 Drawing Line Router Bit

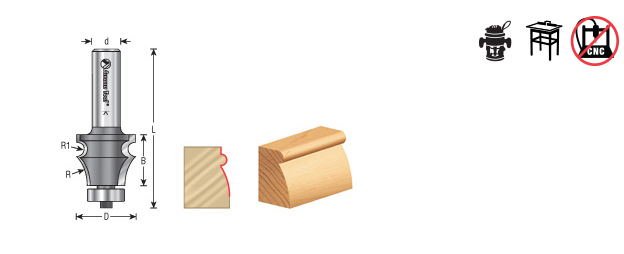

Specifications:

• Diameter (D): 1"
• Radius (R): 1"
• R1: 3/32"
• Cutting Height (B): 7/8"
• Shank (d): 1/2"
• Overall Length (L): 2-3/4"
• Flutes: 2
• Replacement Bearing: 47716

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
