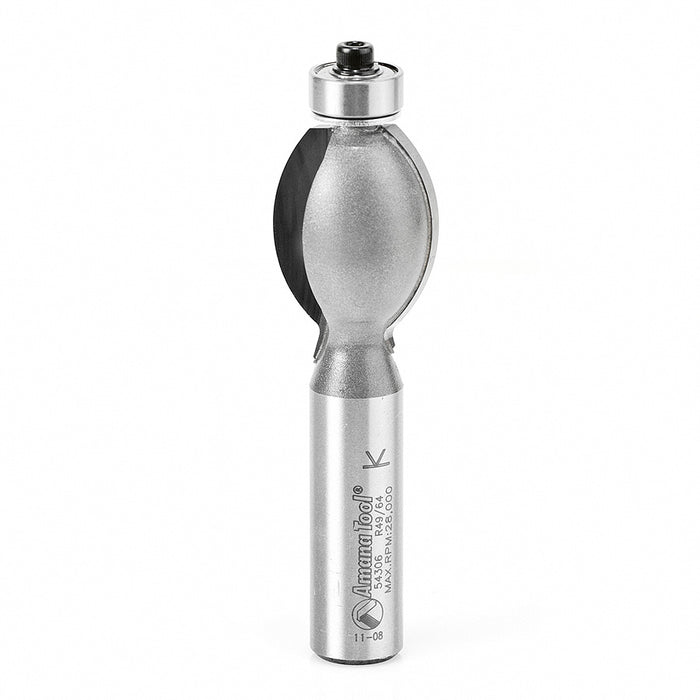

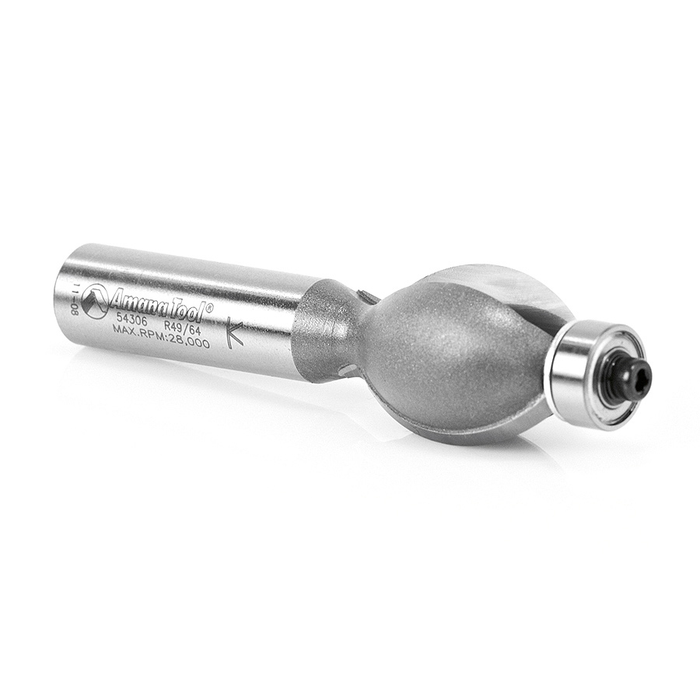

Amana 54306 Edge Fluting Router Bit




$58.00
SKU AMAN54306

Profiling Router Bits: Edge Fluting Router Bits, Carbide Tipped: 3/4" Rad x 7/8" Dia x 1" x 1/2" Shank

This bit produces a fingernail flute, rather than a full 180° radius flute. Creates an interesting edge detail, and can be used to make small-scale cornice-type moldings. Use in a handheld or a table-mounted router.

Standard Equipment:

  • 54306 Edge Fluting Router Bit

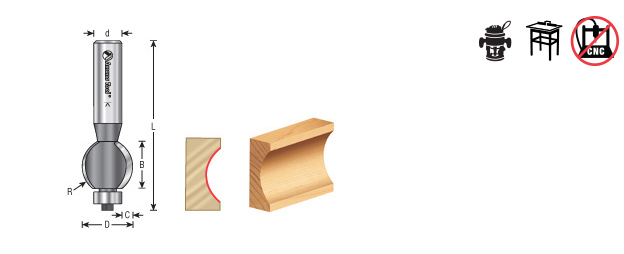

Specifications:

  • Diameter (D): 7/8"
  • Radius (R): 3/4"
  • Cutting Height (B): 1"
  • Shank (d): 1/2"
  • C: 3/16"
  • Overall Length (L): 3-1/4"
  • Flutes: 2
  • Replacement Bearing: 47706

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
