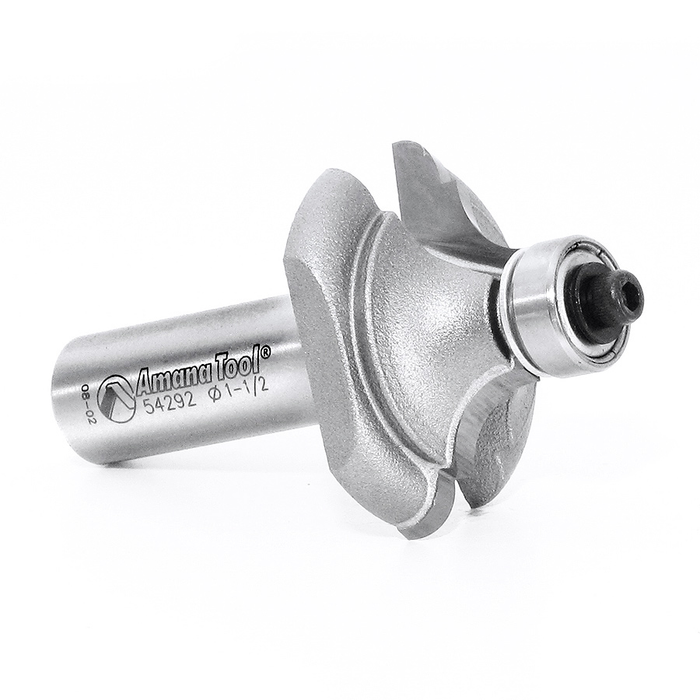

Amana 54292 Classical Cove & Bead Router Bit




$61.00
SKU AMAN54292

Profiling Router Bits: Classical Cove & Bead Router Bits, Carbide Tipped: 3/16" x 5/16" Rad x 1-1/2" Dia x 5/8" x 1/2" Shank

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Standard Equipment:

  • 54292 Classical Cove & Bead Router Bit

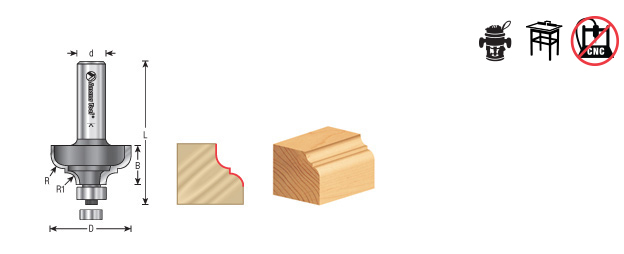

Specifications:

  • Diameter (D): 1-1/2"
  • Radius (R): 3/16"
  • R1: 5/16"
  • Cutting Height (B): 5/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-1/2"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth

WARNING: California residents, see information about Proposition 65
