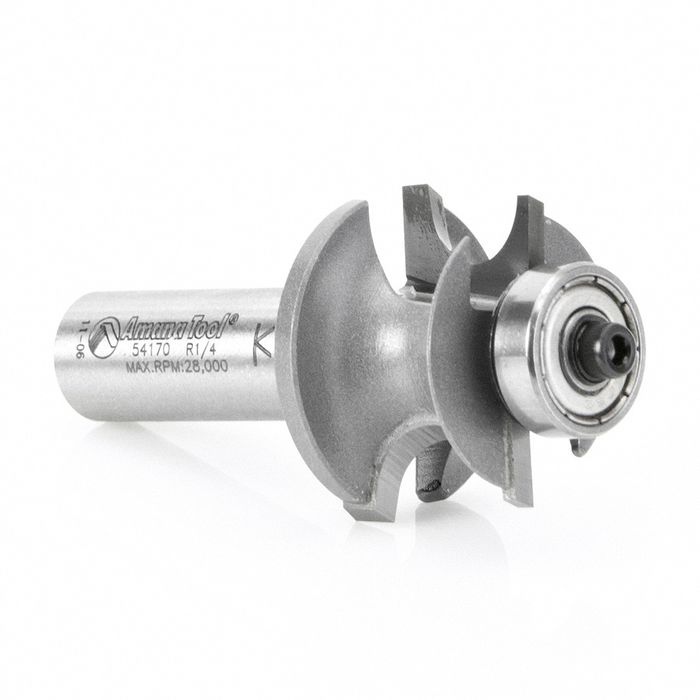

Amana 54170 Corner Beading Router Bit




$53.00
SKU AMAN54170

Profiling Router Bits: Corner Beading Router Bits, Carbide Tipped: 1/4" Rad x 1-1/4" Dia x 23/32" x 1/2" Shank

Produce three slightly different profiles using this bit - an edge bead with or without a fillet and a full corner bead - by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.

Standard Equipment:

  • 54170 Corner Beading Router Bit

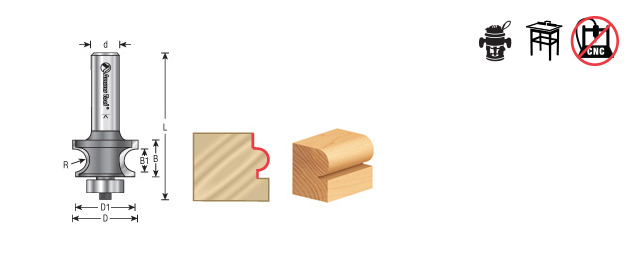

Specifications:

  • Radius (R): 1/4"
  • Diameter (D): 1-1/4"
  • Cutting Height (B): 23/32"
  • B1: 17/32"
  • D1: 1-1/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-11/16"
  • Flutes: 2
  • Replacement Bearing: 47716

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
