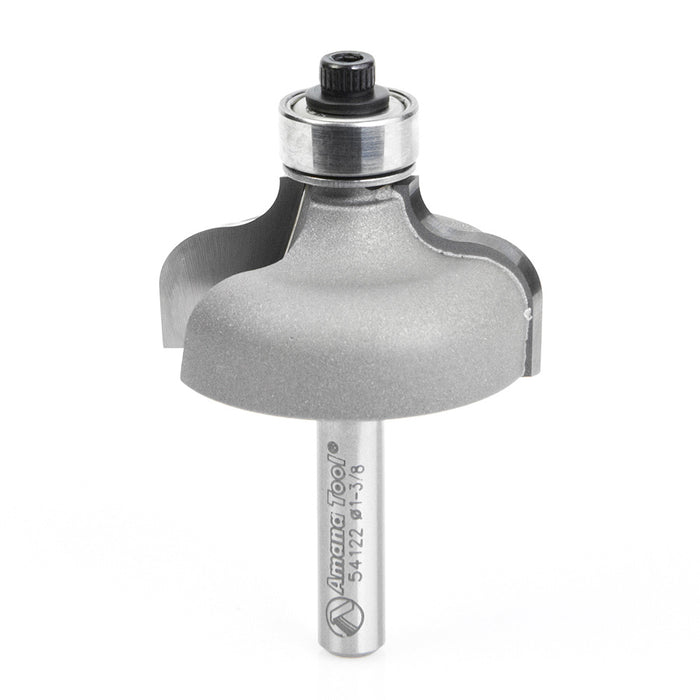

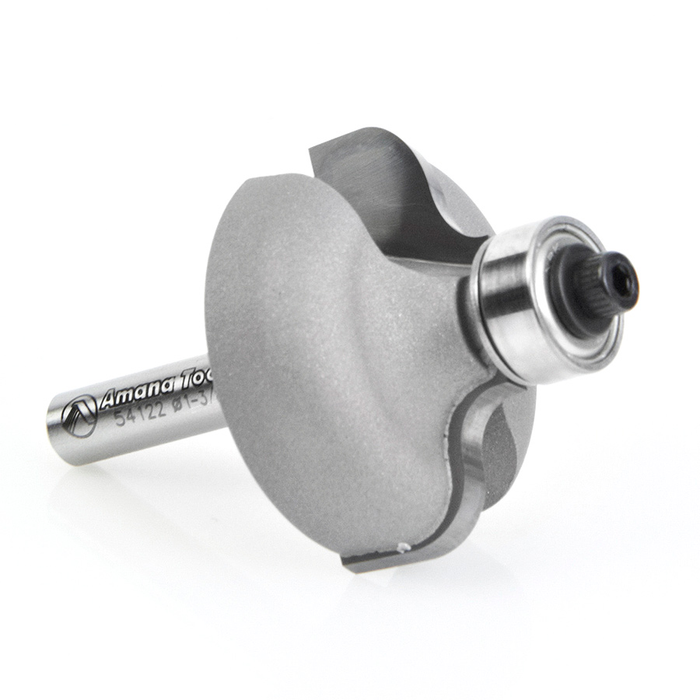

Amana 54122 Ogee Router Bit

Door Making Router Bits: Ogee Router Bits, Carbide Tipped: 1/4" x 3/16" Rad x 1-3/8" Dia x 11/16" x 1/4" Shank

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Standard Equipment:

• 54122 Ogee Router Bit

Specifications:

• Diameter (D): 1-3/8"
• Radius (R): 1/4"
• R1: 3/16"
• Cutting Height (B): 11/16"
• Shank (d): 1/4"
• Overall Length (L): 2-3/16"
• Replacement Bearing: 47706
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
