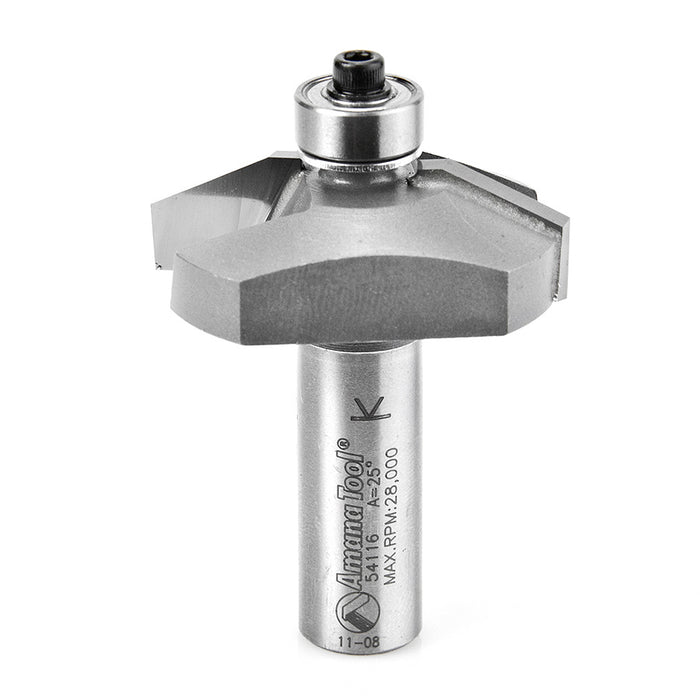

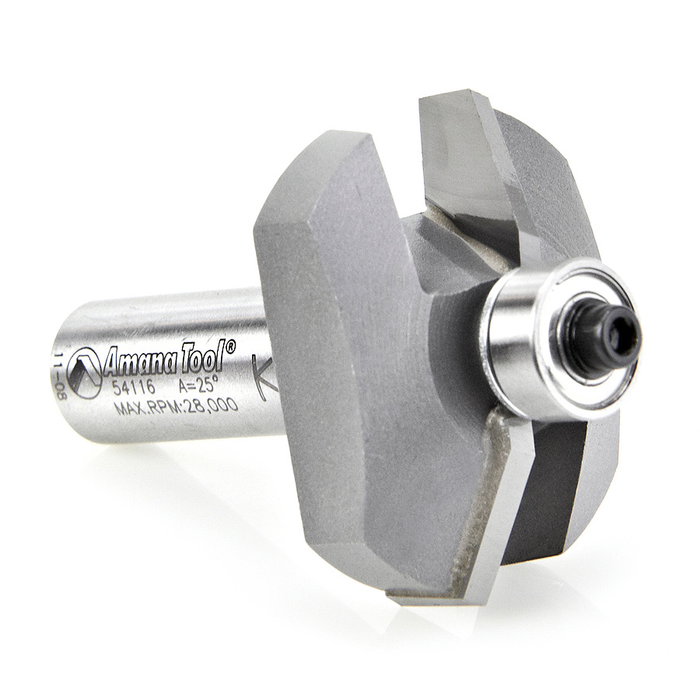

Amana 54116 Traditional Raised Panel Router Bit




$61.00
SKU AMAN54116

Door Making Router Bits: Raised Panel Router Bits, Carbide Tipped: 25° x 1-5/8" Dia x 1/2" x 1/2" Shank

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended.

Standard Equipment:

  • 54116 Traditional Raised Panel Router Bit

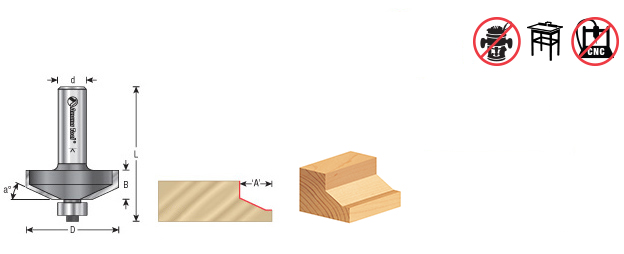

Specifications:

  • Angle (a°): 25°
  • Diameter (D): 1-5/8"
  • Cutting Height (B): 1/2"
  • Cutting Depth (A): 9/16"
  • Shank (d): 1/2"
  • Overall Length (L): 2-3/8"
  • Replacement Bearing: 47706
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
