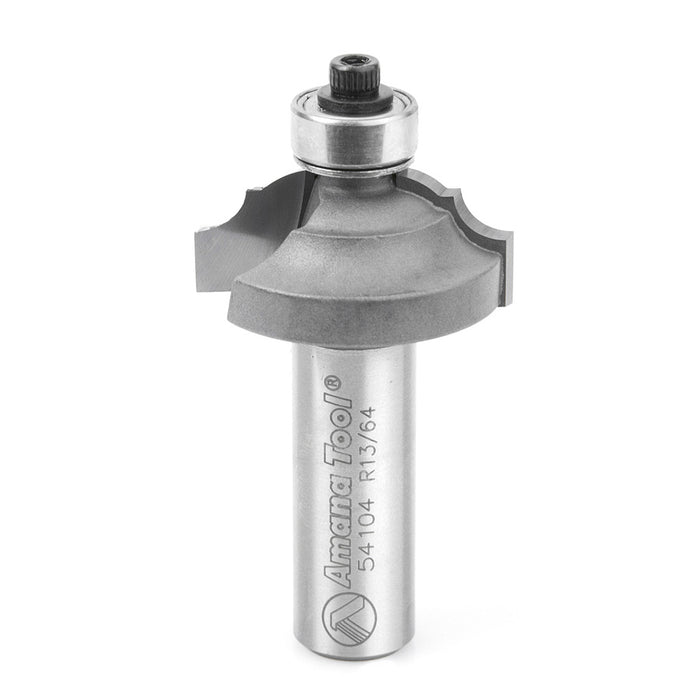

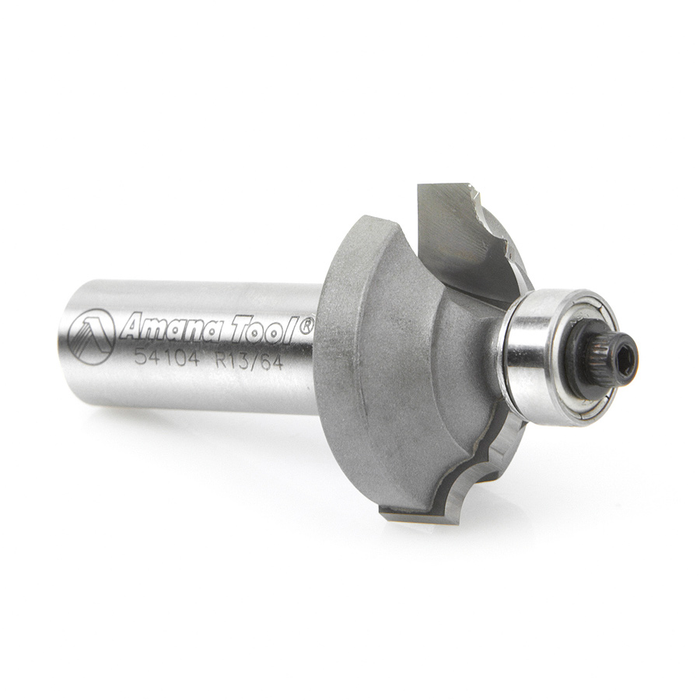

Amana 54104 Classical Cove & Bead Router Bit


Profiling Router Bits: Classical Cove & Bead Router Bits, Carbide Tipped: 13/64" x 5/16" Rad x 1-1/4" Dia x 1/2" x 1/2" Shank

This bead and cove combines the two basic forms, separating them with a fillet. The cove comes off the pilot bearing. Produce a complex profile in a single pass. Use in a handheld or table-mounted router.

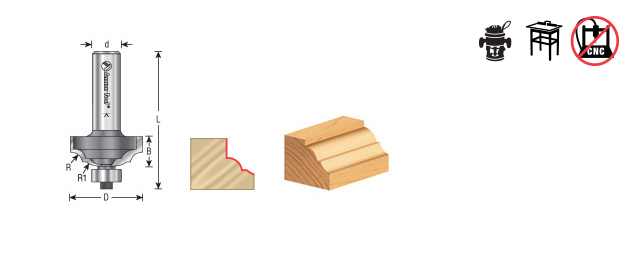

Standard Equipment:

  • 54104 Classical Cove & Bead Router Bit


  • Radius: 13/64"
  • Diameter (D): 1-1/4"
  • Cutting Height (B): 1/2"
  • R1: 5/16"
  • Shank (d): 1/2"
  • Overall Length (L): 2-3/8"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
