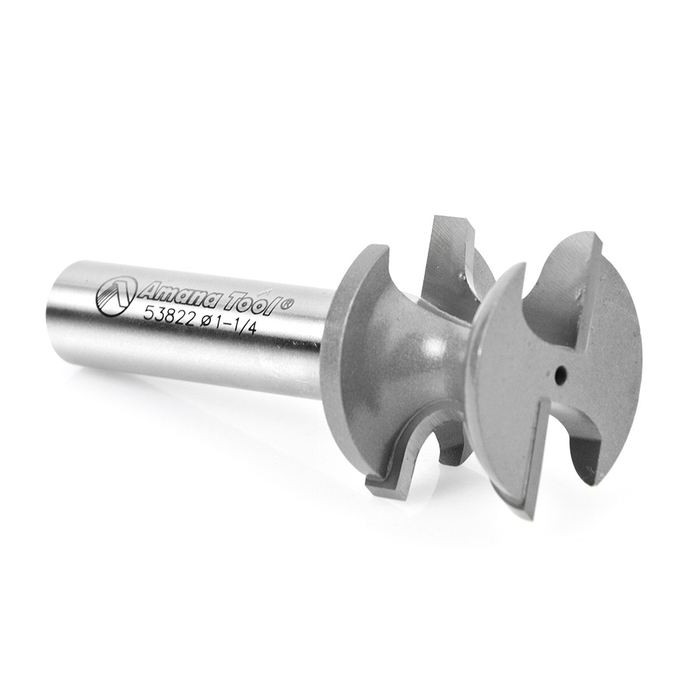

Amana 53822 Window Sill Edge Router Bit




$55.00
SKU AMAN53822

Door Making Router Bits: Window Sill Edge Router Bits, Carbide Tipped: 7/32" Rad x 1-1/4" Dia x 7/8" x 1/2" Shank

These bits shape a flowing ogee edge for creating traditional window sills.

Standard Equipment:

  • 53822 Window Sill Edge Router Bit

Specifications:

  • Radius (R): 7/32"
  • R1: 1/4"
  • Diameter (D): 1-1/4"
  • Cutting Height (B): 7/8"
  • B1: 11/16"
  • R1: 1/4"
  • C: 3/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-7/8"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
