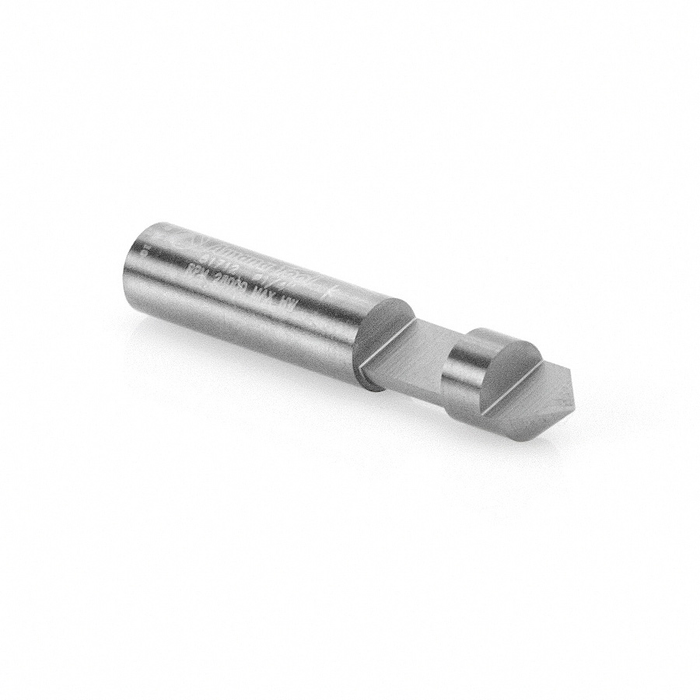

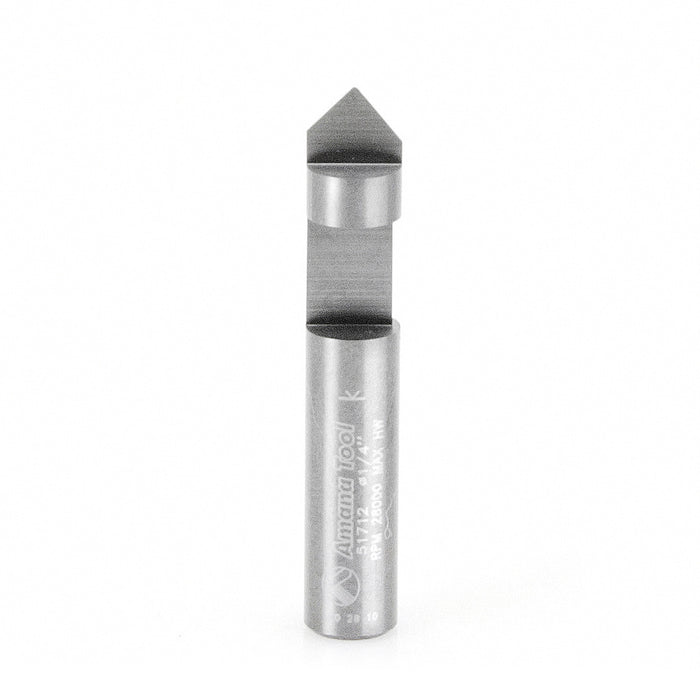

Amana 51712 Solid Carbide Panel Hole and Flush Cut Router Bit


Trimming Router Bits: Hole and Flush Cut Router Bits, Solid Carbide: 1/4" Dia x 1/4" x 1/4" Shank

This bit is used where laminate is applied over pre-cut openings in the substrate. In a continuous operation, bore through the laminate and cut the laminate out of the opening. The plunge point bores through the laminate to begin, and the integral pilot rides along the opening's inside edge to guide the trimming cut.

Standard Equipment:

  • 51712 Solid Carbide Panel Hole and Flush Cut Router Bit

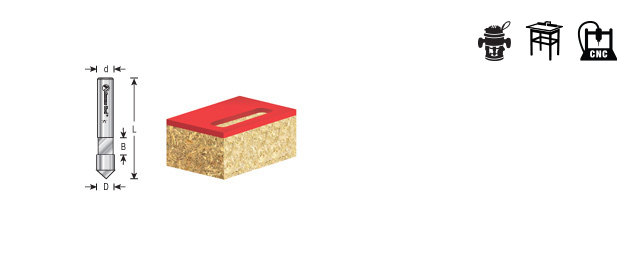

  • Diameter (D): 1/4"
  • Cutting Height (B): 1/4"
  • Shank (d): 1/4"
  • Overall Length (L): 1-1/2"
  • Flutes: 1


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
