Amana 51710 Solid Carbide V-Groove Router Bit


Signmaking Router Bits: V-Groove Router Bits, Solid Carbide: 1/4" Dia x 3/8" x 1/4" Shank

Rout fine-line V-Grooves in laminate-covered and wooden surfaces with this solid-carbide bit, designed specifically for use in a laminate trimmer.

Standard Equipment:

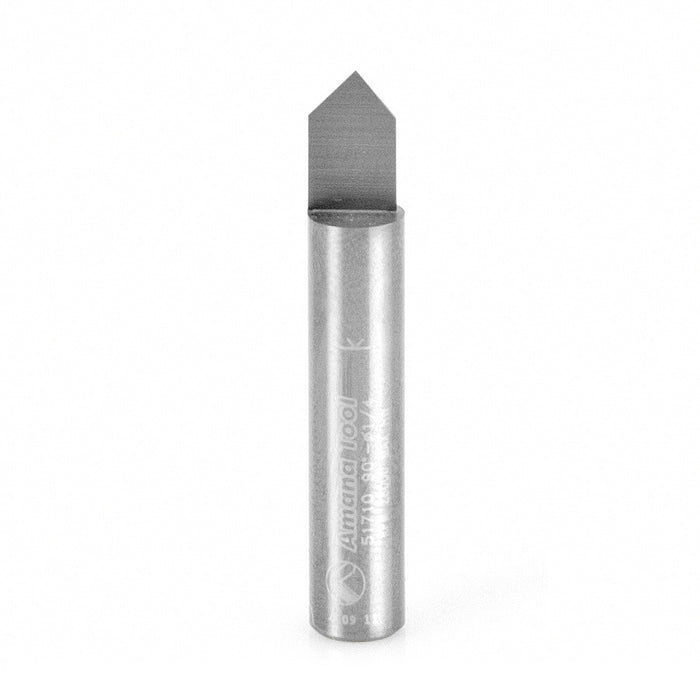

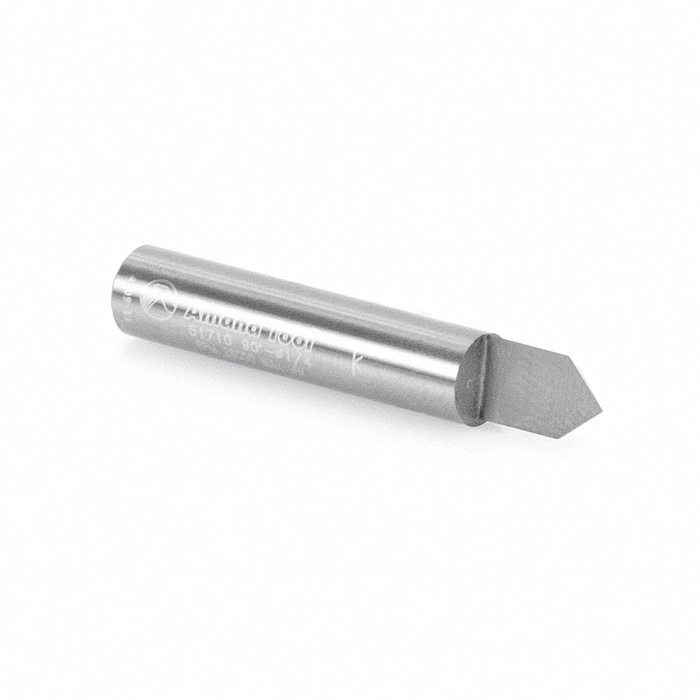

  • 51710 Solid Carbide V-Groove Router Bit

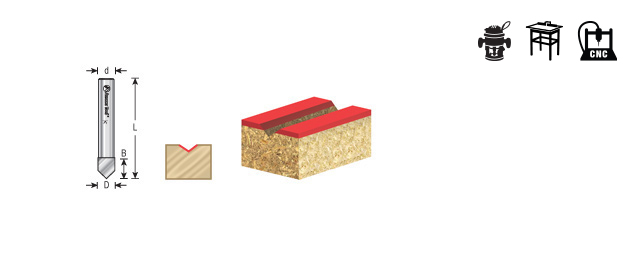

  • Diameter (D): 1/4"
  • Cutting Height (B): 3/8"
  • Shank (d): 1/4"
  • Overall Length (L): 1-1/2"
  • Flutes: 1


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
