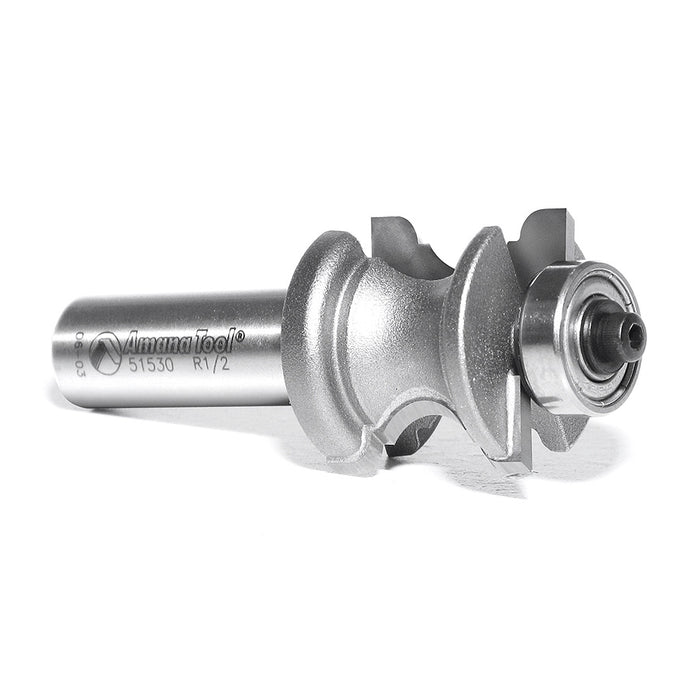

Amana 51530 Bullnose/Cove Edge Router Bit




$110.00
SKU AMAN51530

Profiling Router Bits: Bullnose Router Bits, Carbide Tipped: 1/8 x 1/4" Rad x 1-1/8" Dia x 1" x 1/2" Shank

Cut a thumbnail in a single pass, flanked top and bottom by a fillet and a cove, a combination often called an astragal. Three sizes scaled for stock 3/4" through 1-1/2" thick. Should be used in a table-mounted router. The tool is equipped with a ball-bearing guide for template work.

Standard Equipment:

  • 51530 Bullnose Router Bit

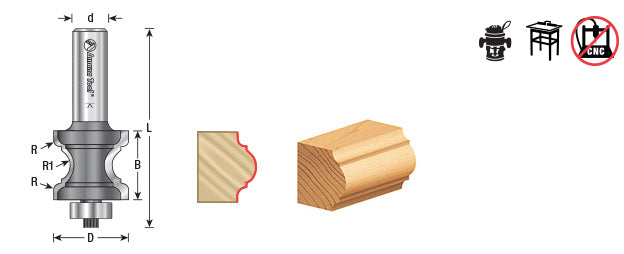

Specifications:

  • Radius (R): 1/8"
  • R1: 1/4"
  • Diameter (D): 1-1/8"
  • Cutting Height (B): 1"
  • Shank (d): 1/2"
  • Overall Length (L): 2-7/8"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
