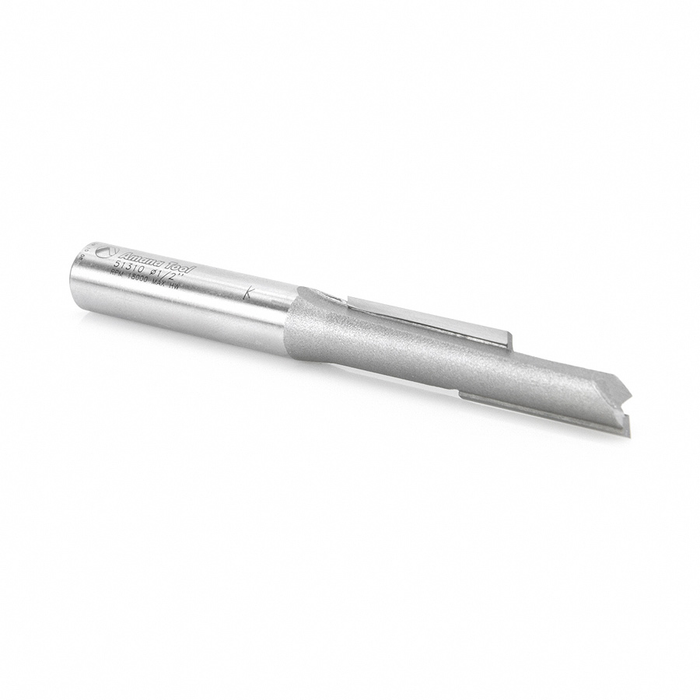

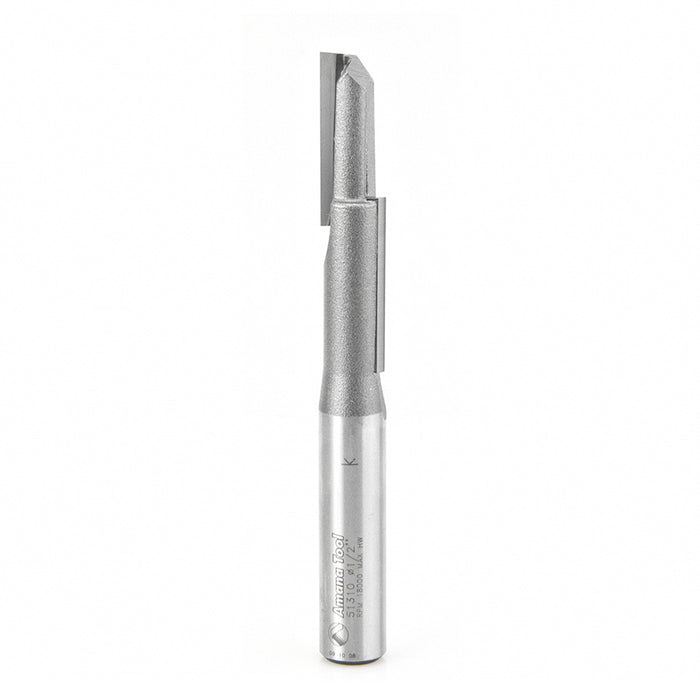

Amana 51310 Stagger Tooth Panel Pilot Router Bit


Straight Plunge Router Bits: Stagger Tooth Panel Pilot Router Bits, Carbide Tipped: 1/2" Dia x 2-1/2" x 1/2" Shank

Two cutting edges spaced 180 degrees apart, each half the length of its flute. One extends from the tip to the middle of the flute, the other from the middle to end. The configuration combines the cutting speed and chip clearance of a single-flute bit with the finish of a double-flute bit. Excellent bit for cutting dense or abrasive man-made materials and panel goods.

Standard Equipment:

  • 513106 Stagger Tooth Panel Pilot Router Bitt

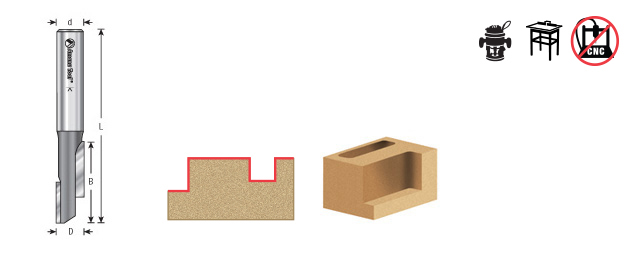

  • Diameter (D): 1/2"
  • Cutting Height (B): 2-1/2"
  • Shank (d): 1/2"
  • Overall Length (L): 4-1/2"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
