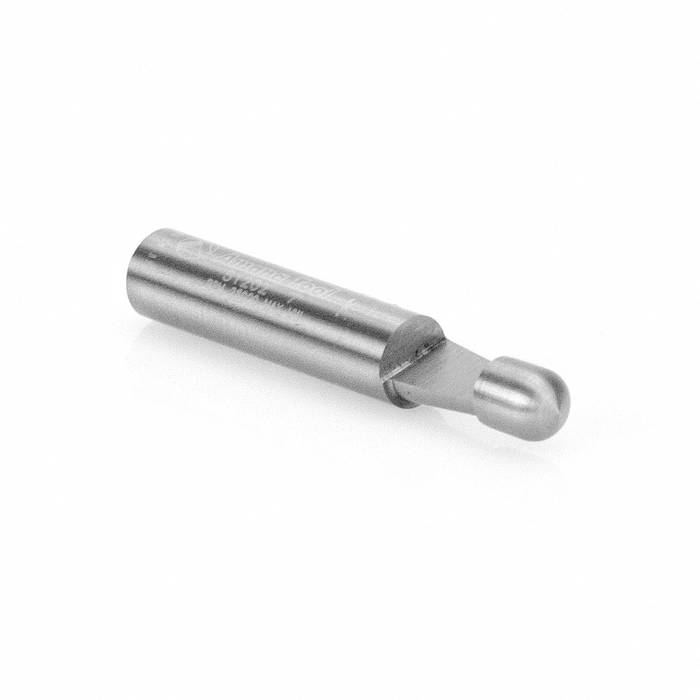

Amana 51202 Solid Carbide Panel Pilot Bevel Trim Router Bit


Trimming Router Bits: Bevel Trim Router Bits, Solid Carbide: 7° x 1/4" Dia x 1/4" x 1/4" Shank

The ideal laminate trimming bit for high-volume production. Solid carbide and integral pilot (no bearing to maintain) extend life of bit, slim configuration reduces vibration. Suitable for routers and trimmers.

Standard Equipment:

  • 51200 Solid Carbide Panel Pilot Flush Trim Router Bit

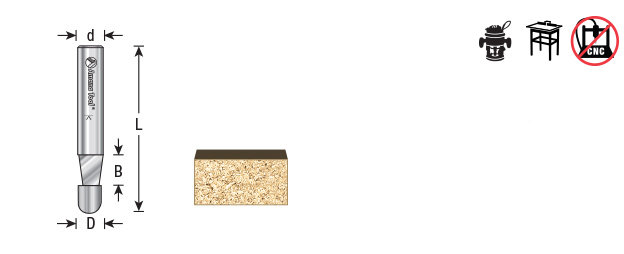

  • Type: 7° Bevel
  • Diameter (D): 1/4"
  • Cutting Height (B): 1/4"
  • Shank (d): 1/4"
  • Overall Length (L): 1-1/2"
  • Flutes: 1


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
