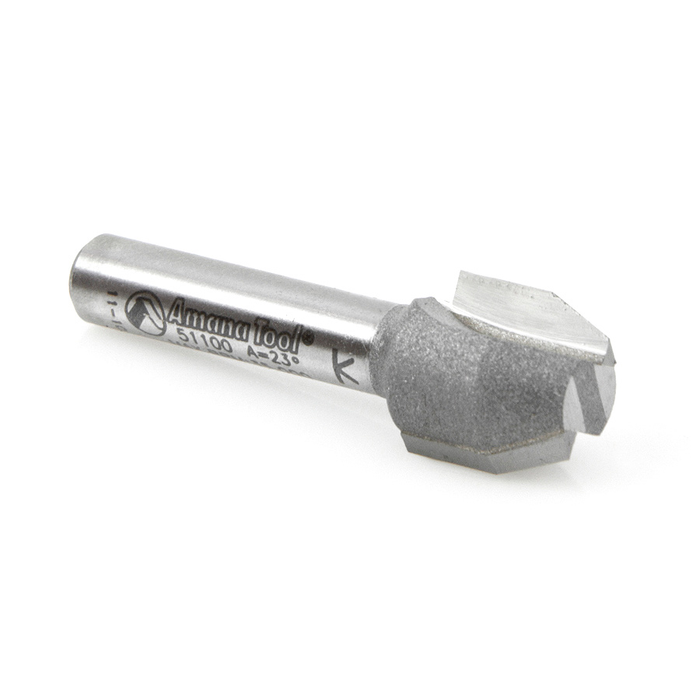

Amana 51100 Combination Bevel/Flush Laminate Trim Router Bit




Sold out
$18.00
SKU AMAN51100

Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 23° x 1/2" Dia x 1/2" x 1/4" Shank

Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.

Standard Equipment:

  • 51100 Combination Bevel/Flush Laminate Trim Router Bit

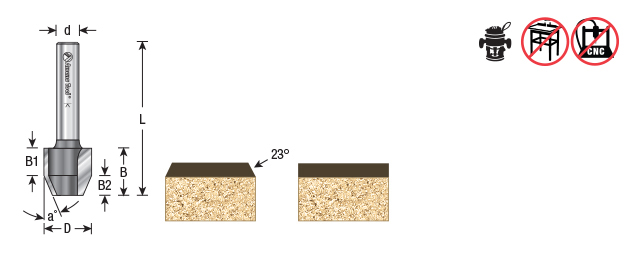

Specifications:

  • Angle (a°): 23°
  • Diameter (D): 1/2"
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • B1: 19/64" (7.4mm)
  • B2: 13/64" (5.3mm)
  • Overall Length (L): 1-3/4"
  • Flutes: 2
  • Replacement Bearing: 47718

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
