Amana 49618 Beading Router Bit


Profiling Router Bits: Beading Router Bits, Carbide Tipped: 1/2" Rad x 1-1/2" Dia x 3/4" x 1/2" Shank

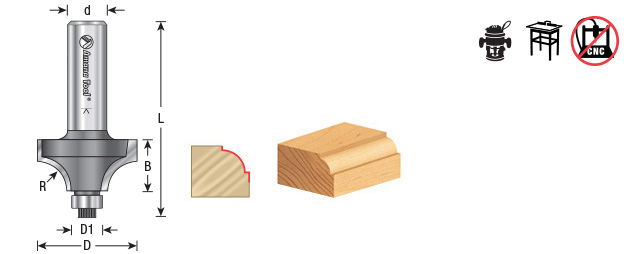

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Standard Equipment:

  • 49618 Beading Router Bit


  • Radius (R): 1/2"
  • Diameter (D): 1-1/2"
  • Cutting Height (B): 3/4"
  • D1: 3/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-5/8"
  • Flutes: 2
  • Replacement Bearing: 47702


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
