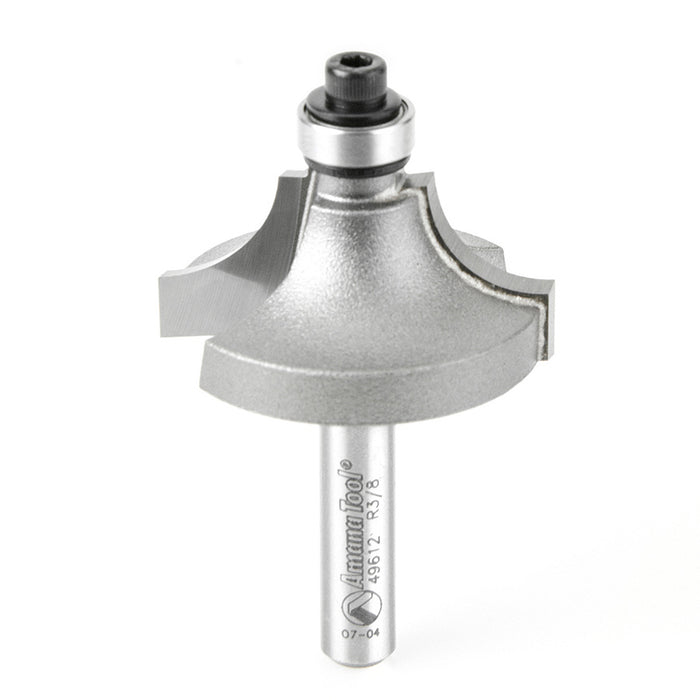

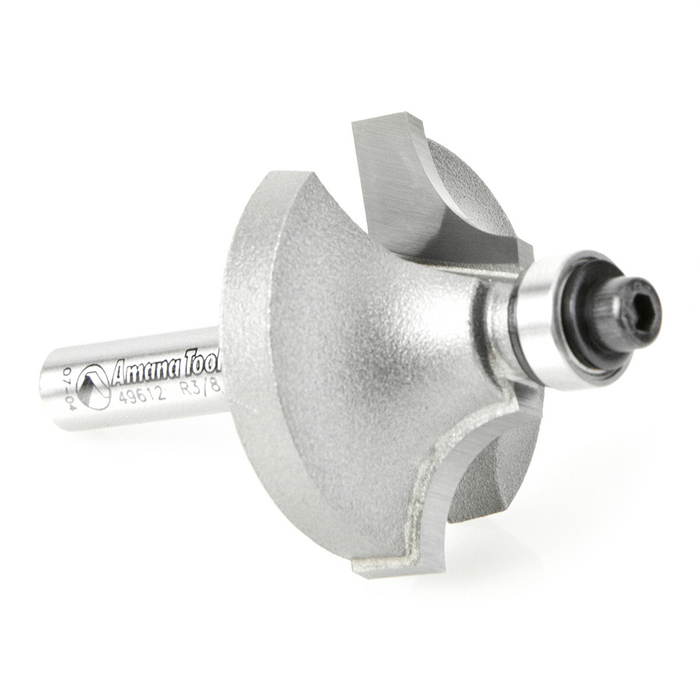

Amana 49612 Beading Router Bit
$30.00
SKU AMAN49612
Profiling Router Bits: Beading Router Bits, Carbide Tipped: 3/8" Rad x 1-1/4" Dia x 5/8" x 1/4" Shank
Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).
Standard Equipment:
- 49612 Beading Router Bit
Specifications:
- Radius (R): 3/8"
- Diameter (D): 1-1/4"
- Cutting Height (B): 5/8"
- D1: 3/8"
- Shank (d): 1/4"
- Overall Length (L): 2-3/16"
- Flutes: 2
- Replacement Bearing: 47702
Features:
- High quality long lasting European sub-micrograin & micrograin carbide
- Thick carbide for multiple resharpenings
- Different carbide grades for different materials
- Silver induction brazing for maximum carbide bonding strength
- Produced according to Holz-BG German standards for safety and quality
- Centerless ground shank for exact fit
- Multi axis grinding
- Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
- Use of only solid bar stock steel (brazed bits)
- Shanks laser etched with size, maximum RPM ratings and clamping depth
