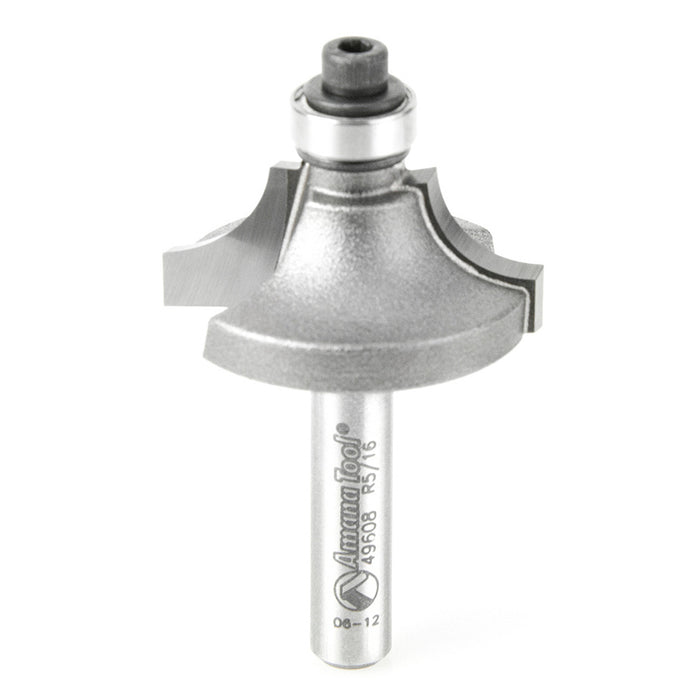

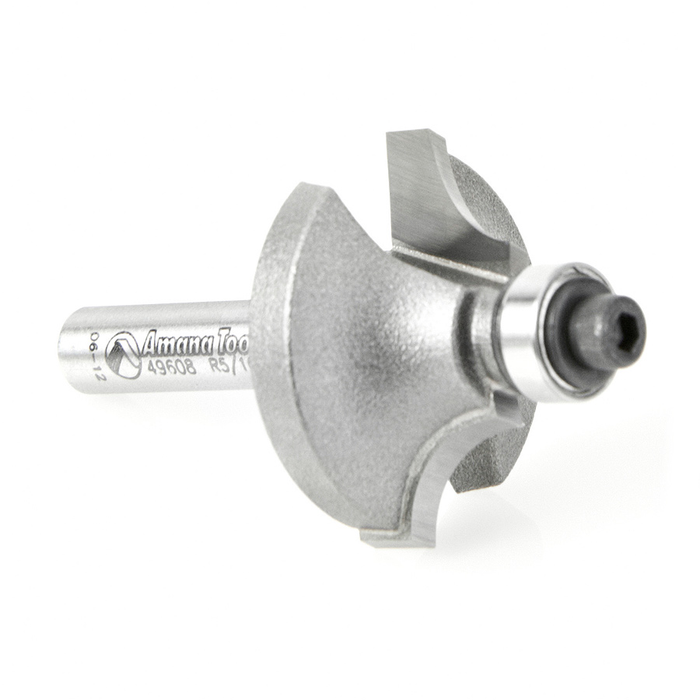

Amana 49608 Beading Router Bit

Profiling Router Bits: Beading Router Bits, Carbide Tipped: 5/16" Rad x 1-1/8" Dia x 1/2" x 1/4" Shank

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Standard Equipment:

• 49608 Beading Router Bit

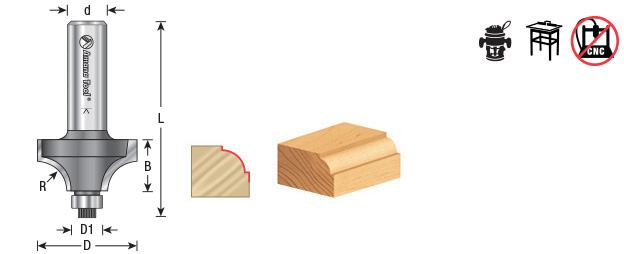

Specifications:

• Radius (R): 5/16"
• Diameter (D): 1-1/8"
• Cutting Height (B): 1/2"
• D1: 3/8"
• Shank (d): 1/4"
• Overall Length (L): 2-1/16"
• Flutes: 2
• Replacement Bearing: 47702

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
