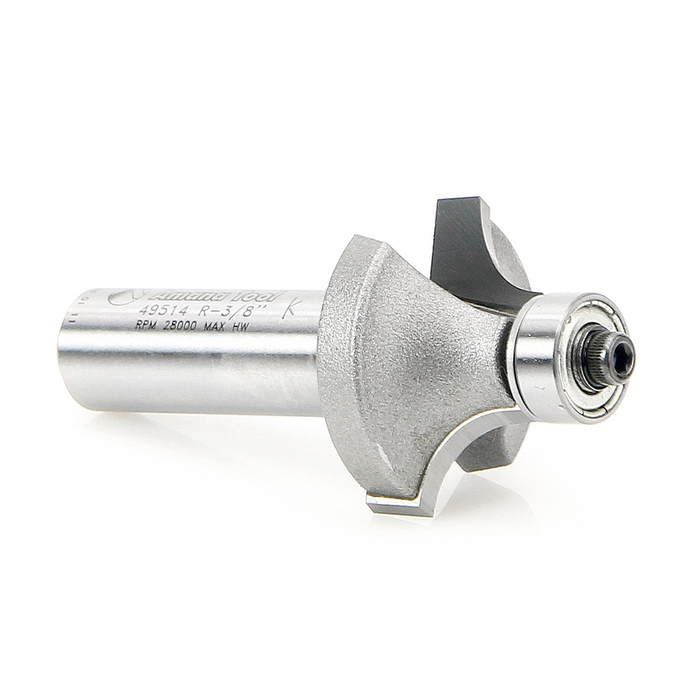

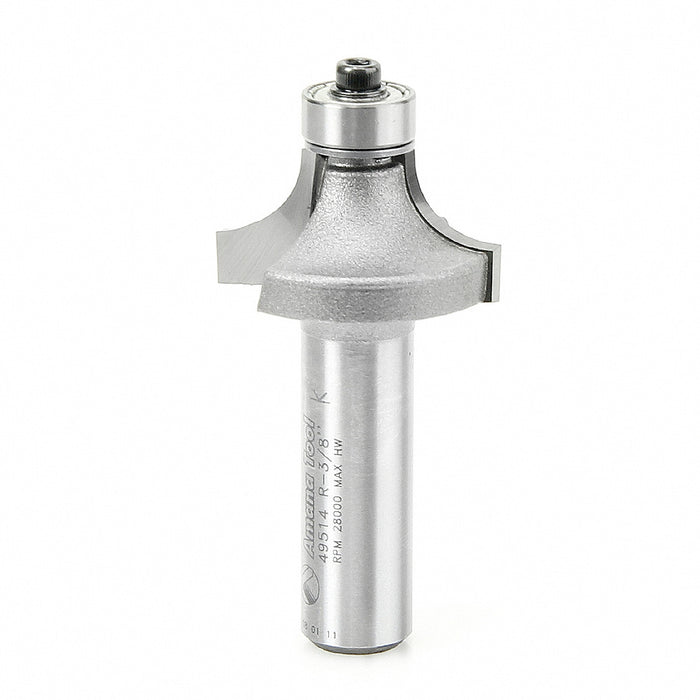

Amana 49514 Corner Round Router Bit




$30.00
SKU AMAN49514

Profiling Router Bits: Corner Round Router Bits, Carbide Tipped: 3/8" Rad x 1-1/4" Dia x 5/8" x 1/2" Shank

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Standard Equipment:

  • 49514 Corner Round Router Bit

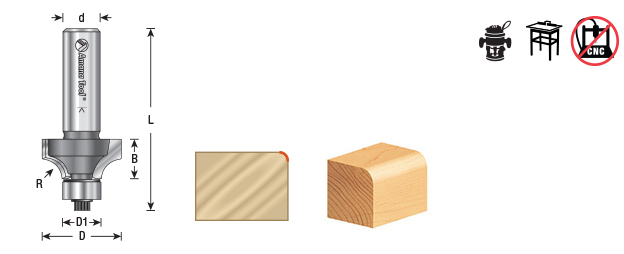

Specifications:

  • Radius (R): 3/8"
  • Diameter (D): 1-1/4"
  • Cutting Height (B): 5/8"
  • D1: 1/2"
  • Shank (d): 1/2"
  • Overall Length (L): 2-9/16"
  • Flutes: 2
  • Replacement Bearing: 47706

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
