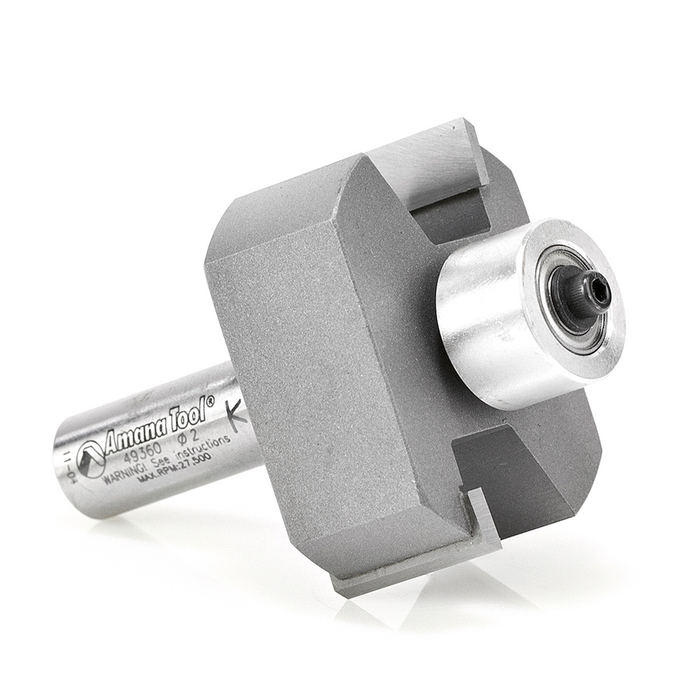

Amana 49360 Superabbet Router Bit




$92.00
SKU AMAN49360

Jointing Router Bits: Rabbeting Router Bits, Carbide Tipped: 2" Dia x 7/8" x 1/2" Shank

This ingenious tool features both interchangeable cutting edges and an interchangeable guide collar, enabling you to cut a wide range of rabbets. Changing the collars on the twin ball-bearing guide steps the cut width in 1/16" increments from flush through 3/4" with five extra "plywood" sizes.

Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2"-diameter bit includes a hex key, instructions, and all necessary parts for 5/8" and 3/4" deep rabbets.

Use in a table-mounted router. Not for use in a handheld router!

Standard Equipment:

  • 49360 Rabbeting Router Bit

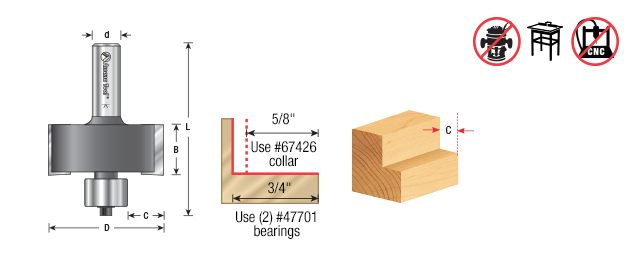

Specifications:

  • Diameter (D): 2"
  • Cutting Height (B): 7/8"
  • Shank (d): 1/2"
  • C: 5/8" (#67426) & 3/4" (Two #47701))
  • Overall Length (L): 2-3/8"
  • Flutes: 2
  • Maximum RPM: 22,000

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth

WARNING: California residents, see information about Proposition 65
