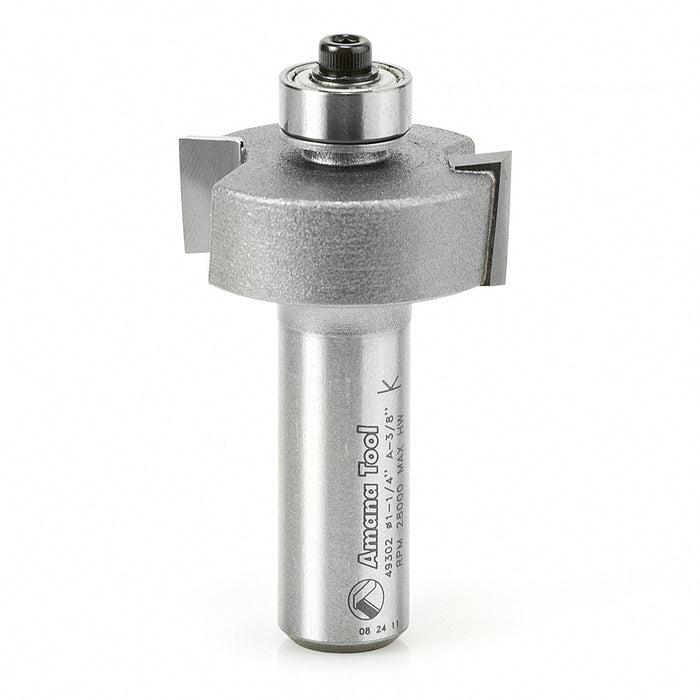

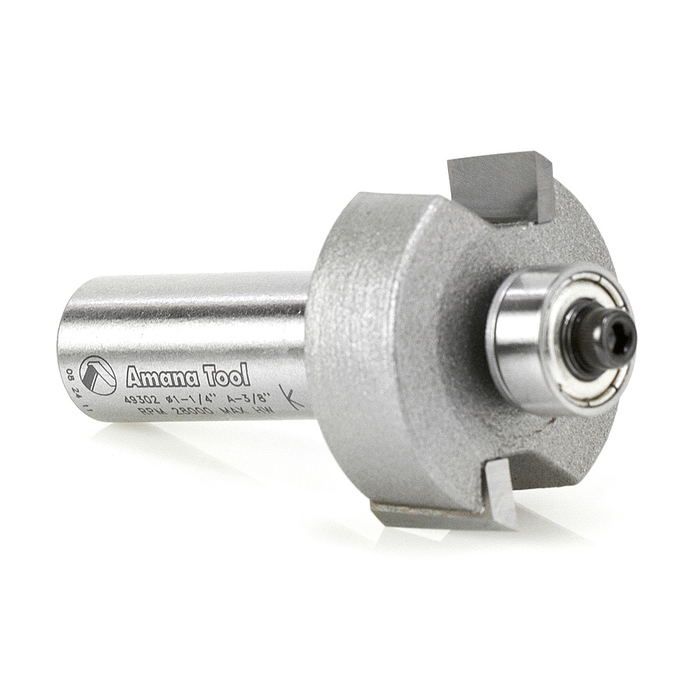

Amana 49302 Rabbeting Router Bit




$37.00
SKU AMAN49302

Jointing Router Bits: Rabbeting Router Bits, Carbide Tipped: 3/8" Depth x 1-1/4" Dia x 1/2" x 1/2" Shank

This is the basic rabbeting bit. It cuts 3/8" wide and up to 1/2" deep. Switch to one of four optional ball-bearing guides to alter the width of cut. Use in a handheld or table-mounted router.

Standard Equipment:

  • 49302 Rabbeting Router Bit

Specifications:

  • Diameter (D): 1-1/4"
  • Cutting Height (B): 1/2"
  • Shank (d): 1/2"
  • C: 3/8"
  • Overall Length (L): 2"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
