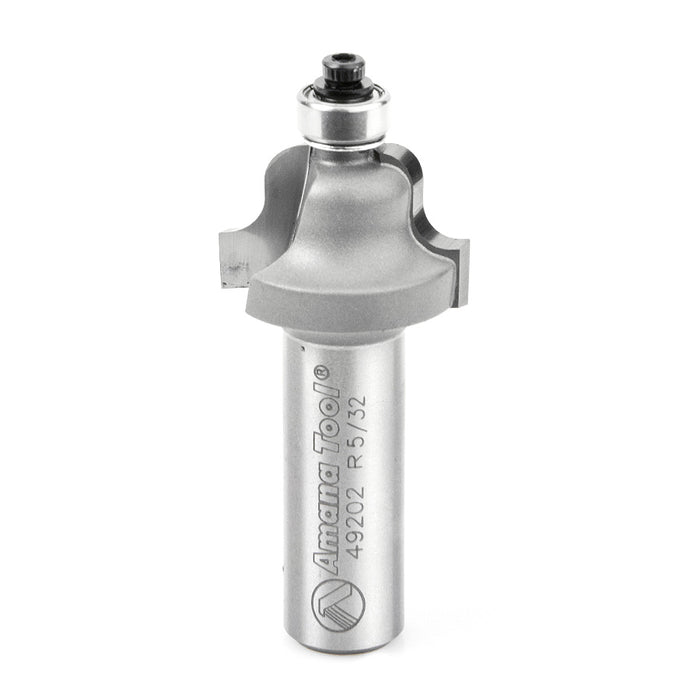

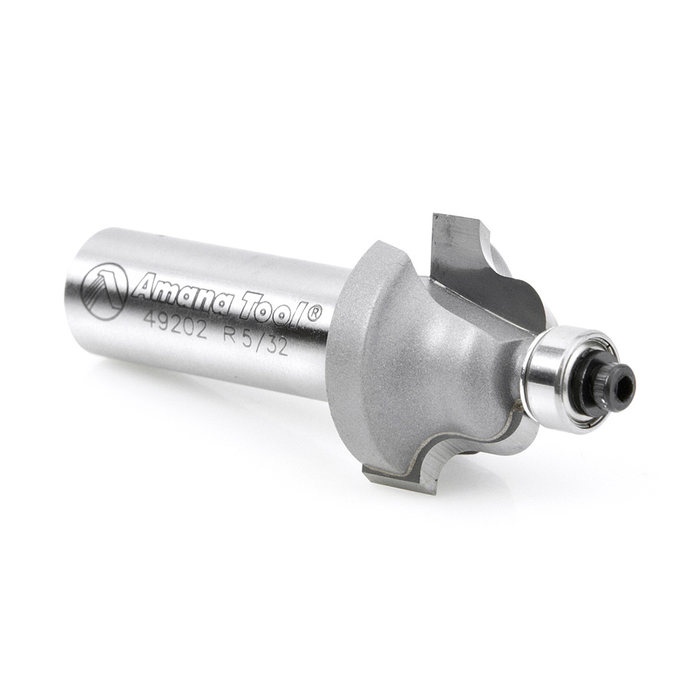

Amana 49202 Roman Ogee Router Bit


Profiling Router Bits: Roman Ogee Router Bits, Carbide Tipped: 5/32" Rad x 1" Dia x 5/8" x 1/2" Shank

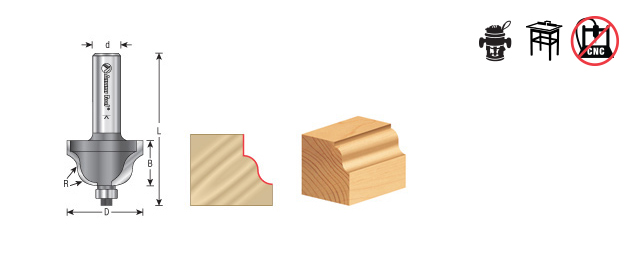

The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee (it isn't an upside-down ogee). The curve starts at the top as a concave, and fairs down into a convex curve. Use in a handheld or table-mounted router.

Use in a handheld or table-mounted router.

Standard Equipment:

  • 49202 Roman Ogee Router Bit


  • Radius (R): 5/32"
  • Diameter (D): 1"
  • Cutting Height (B): 5/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-1/2"
  • Flutes: 2
  • Replacement Bearing: 47704


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
