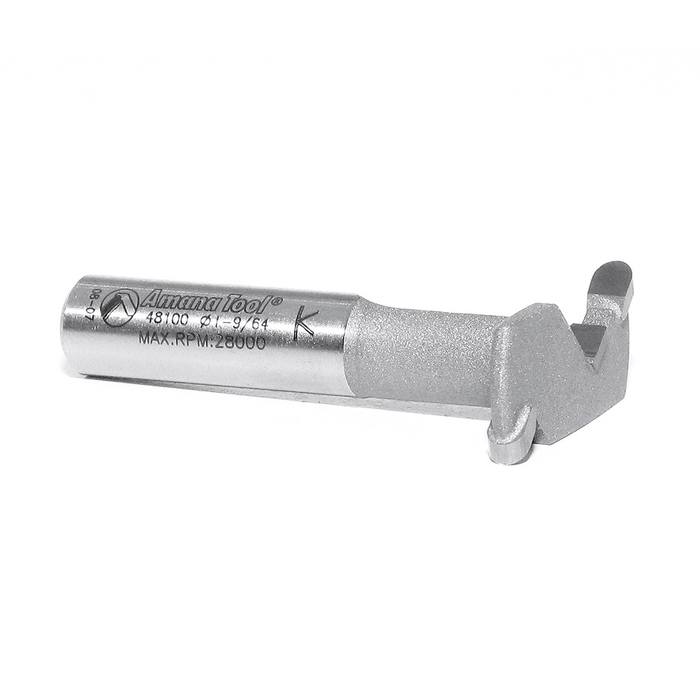

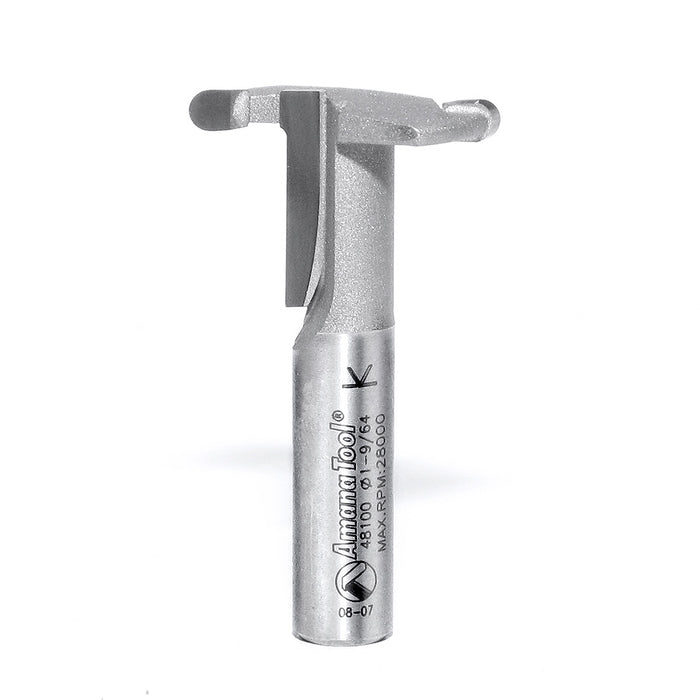

Amana 48100 Special Amerock Hinge Router Bit




$35.00
SKU AMAN48100

Jointing Router Bits: Special Amerock Hinge Router Bits, Carbide Tipped: 1-1/8" Dia x 21/32" x 3/8" Shank

This bit is designed to produce a T-slot for Amerock hinges. For best results use in a table-mounted router.

Standard Equipment:

  • 48100 Special Amerock Hinge Router Bit

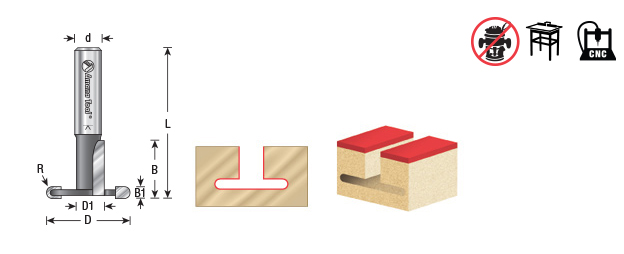

Specifications:

  • Diameter (D): 1-1/8"
  • Radius (R): 5/64"
  • Cutting Height (B): 21/32"
  • Shank (d): 3/8"
  • B1: 5/32"
  • D1: 3/8"
  • Overall Length (L): 2"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
