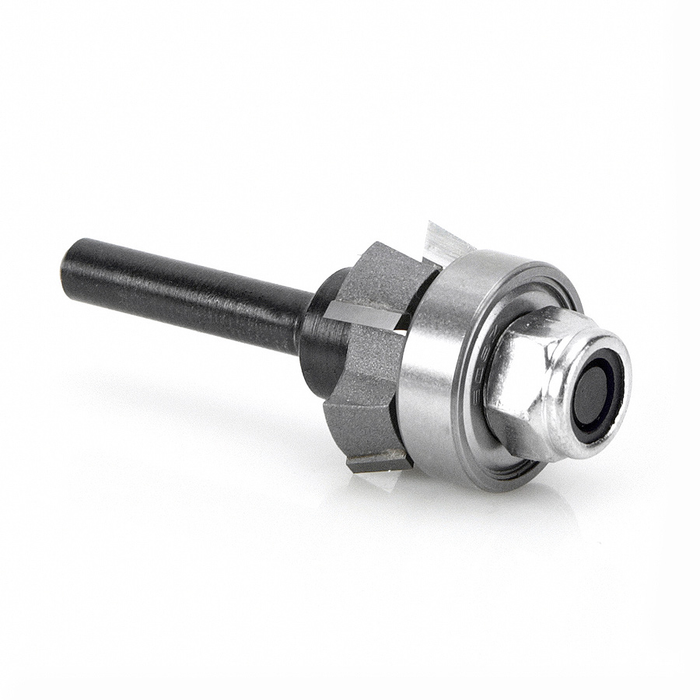

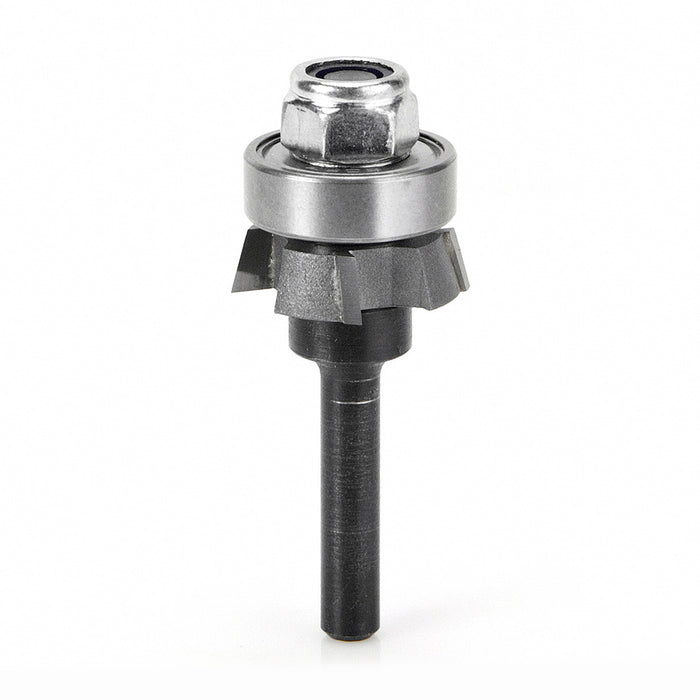

Amana 47404 4 Wing Flush Trim Single Bevel Cutter Router Bit Assembly


Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 15° x 1" Dia x 1/4" x 1/4" Shank with Ball Bearing

An assembly offers the option of switching cutters - from flush trim to either of two bevel trims - without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.

Standard Equipment:

  • 47404 4 Wing Flush Trim Single Bevel Cutter Assembly

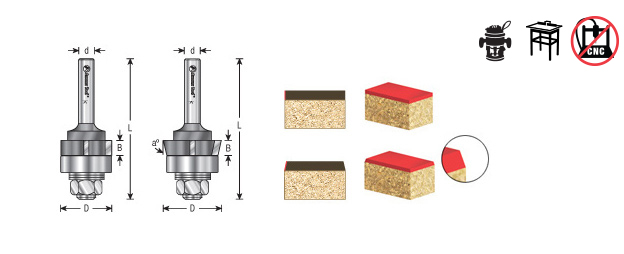

  • Angle (a°): 15°
  • Diameter (D): 1"
  • Cutting Height (B): 1/4"
  • Shank (d): 1/4"
  • Overall Length (L): 2-3/8"
  • Wings: 4
  • Replacement Bearing: 47708


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
