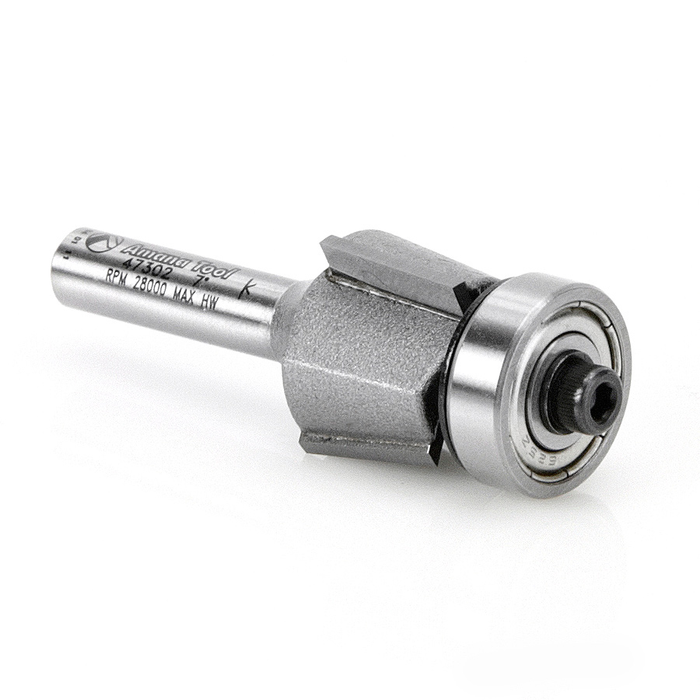

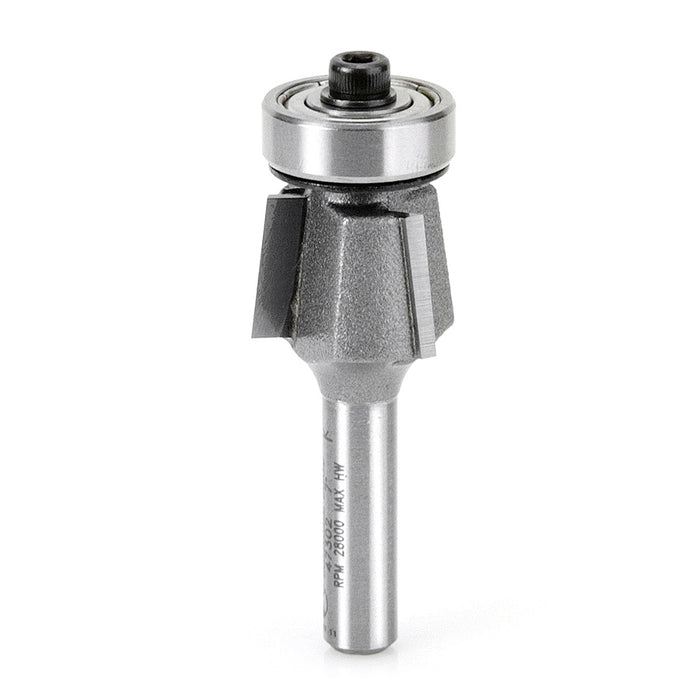

Amana 47302 Bevel Laminate Trim Router Bit

Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 7° x 3/4" Dia x 7/16" x 1/4" Shank with Ball Bearing

The solid construction of this carbide-tipped bit reduces vibration, and its three-flute configuration produces a very smooth cut. Intended for use in a standard router.

Standard Equipment:

• 47302 Bevel Laminate Trim Router Bit

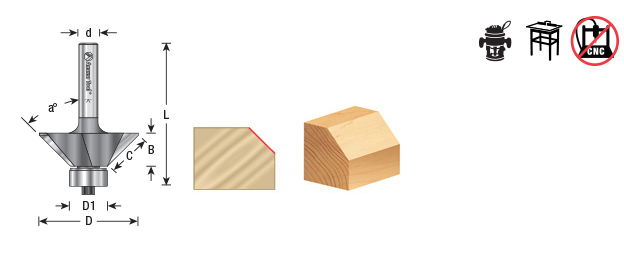

Specifications:

• Angle (a°): 7°
• Diameter (D): 3/4"
• Cutting Height (B): 7/16"
• Shank (d): 1/4"
• D1: 16mm
• Overall Length (L): 2"
• Flutes: 3
• Replacement Bearing: 47716

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
