Amana 47202 Bevel Laminate Trim Router Bit

Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 25° x 3/4" Dia x 1/4" x 1/4" Shank with Ball Bearing

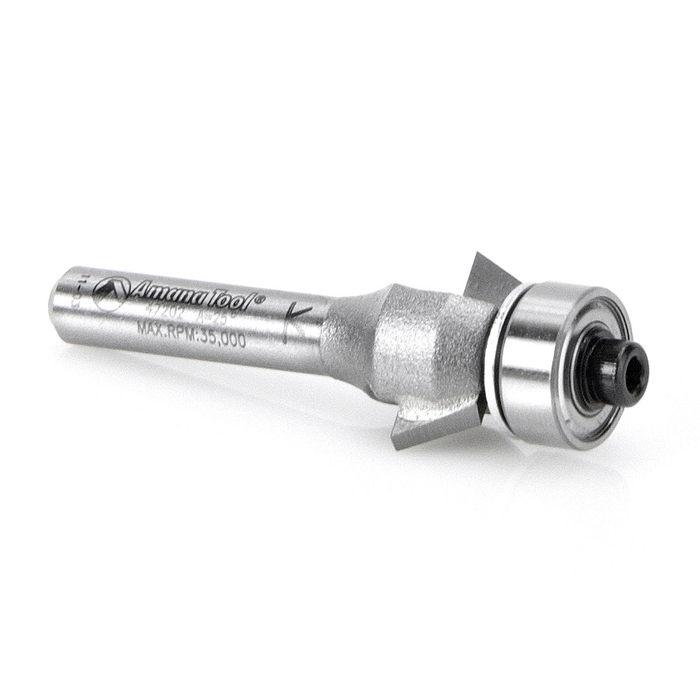

This is a steel-bodied, carbide-tipped bit for bevel trimming laminate with a standard router. The solid construction reduces vibration for the smoothest cut possible with a two-flute bit.

Standard Equipment:

• 47200 Bevel Laminate Trim Router Bit

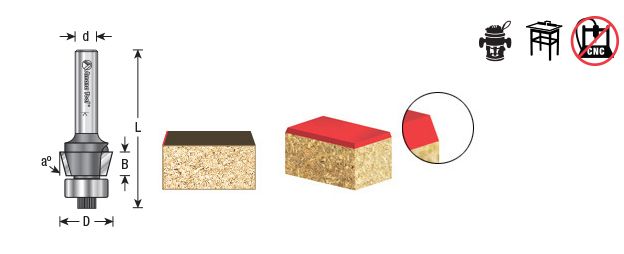

Specifications:

• Angle (a°): 25°
• Diameter (D): 3/4"
• Cutting Height (B): 1/4"
• Shank (d): 1/4"
• Overall Length (L): 2-3/32"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
