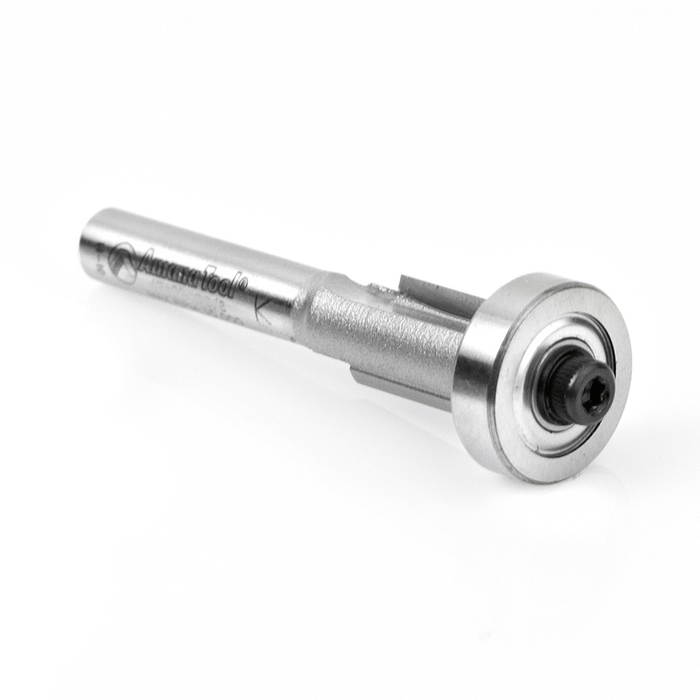

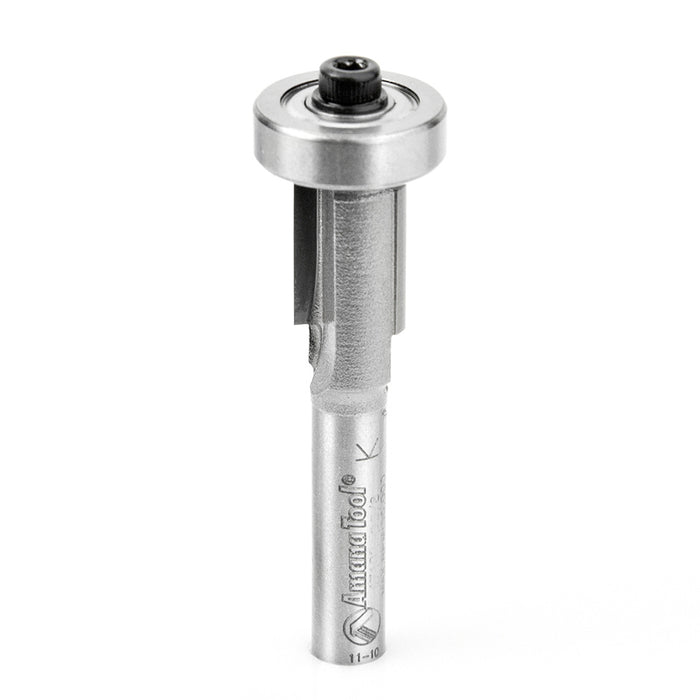

Amana 47190 Overhang Trim Router Bit


Trimming Router Bits: Overhang Trim Router Bits, Carbide Tipped: 1/8" Overhang x 3/8" Dia x 1/2" x 1/4" Shank

Stage flush trimming cuts, whether in laminate work or template work, with this bit. Trimming the material in two passes reduces chipping in laminates and tearout in solid wood. A preliminary cut with the overhang bit leaves a small overhang in laminate or template work, leaves an edge slightly protruding the template.

Complete the operation with a final pass using a standard trim bit.

Standard Equipment:

  • 47190 Overhang Trim Router Bit


  • Diameter (D): 3/8"
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • C: 1/8"
  • Overall Length (L): 2"
  • Flutes: 2
  • Replacement Bearing: 47718


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
