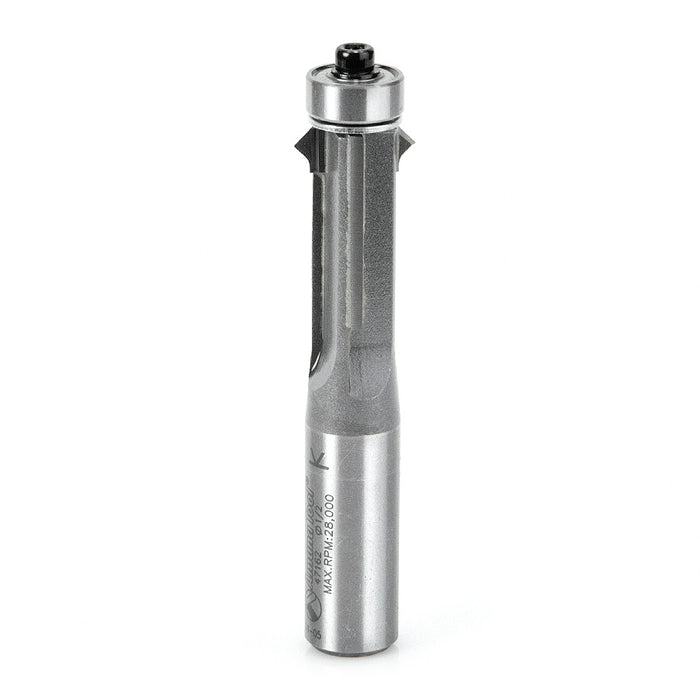

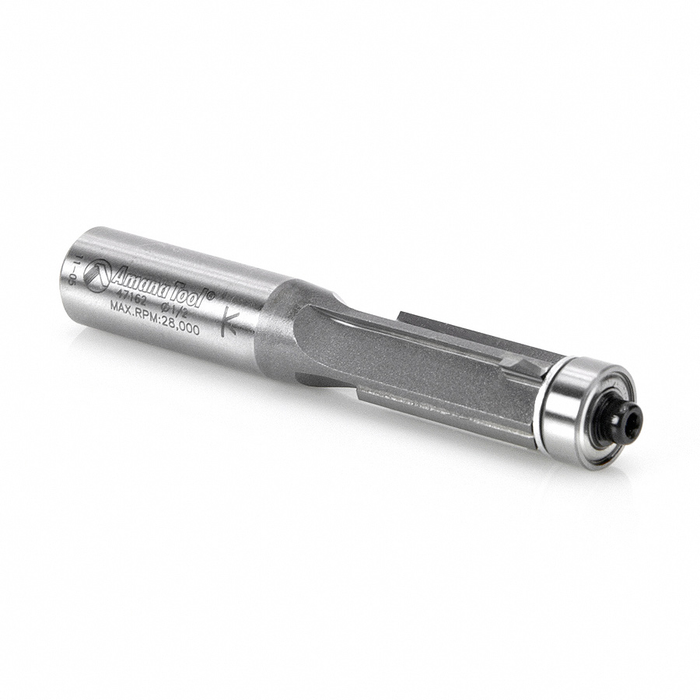

Amana 47162 Flush Trim 'V' Groove Router Bit


Trimming Router Bits: Flush Trim 'V' Groove Router Bits, Carbide Tipped: 5/8" Dia x 1" x 1/2" Shank

Trim the edges of face frames flush with cabinet sides with this bit. At the same time, cut a decorative V-groove to conceal the seam between the frame and the case.

Standard Equipment:

  • 47162 Flush Trim 'V' Groove Router Bit

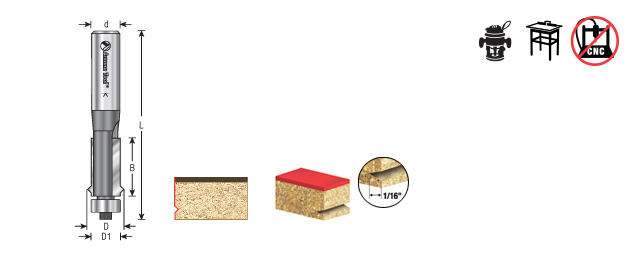

  • Diameter (D): 5/8"
  • Cutting Height (B): 1"
  • Shank (d): 1/2"
  • D1: 1/2"
  • Overall Length (L): 3-1/4"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
