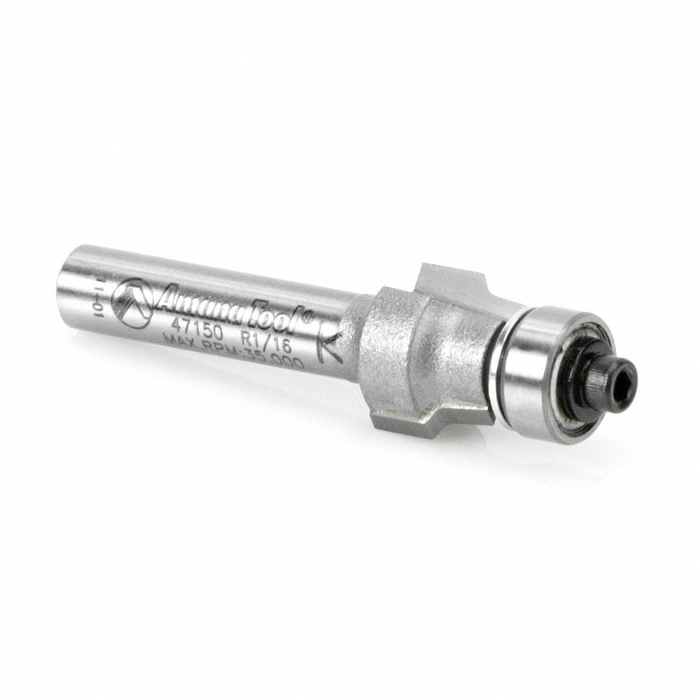

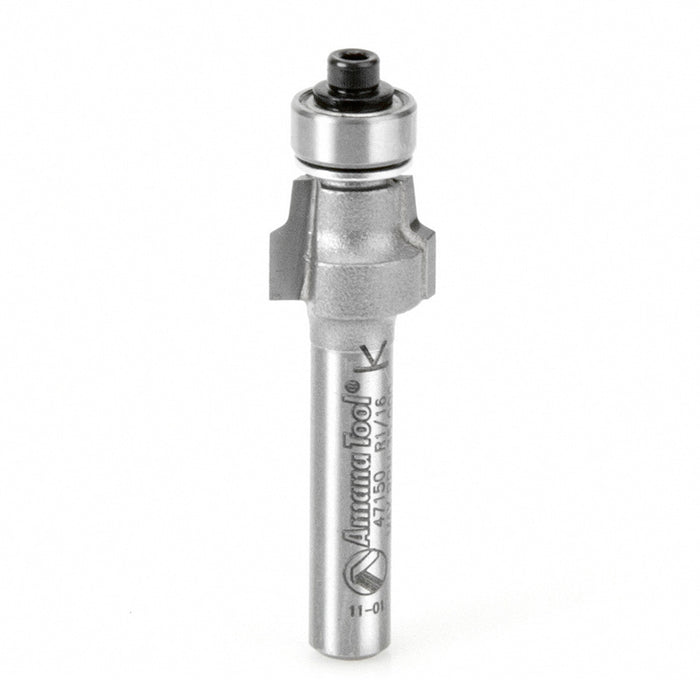

Amana 47150 No-File Trim Router Bit


Trimming Router Bits: No-File Trim Router Bits, Carbide Tipped: 0.059 Rad x 1/2" Dia x 3/8" x 1/4" Shank

Eliminate the time-consuming hand-filing that normally follows each trimming cut on a laminate job. Our No-File bit "breaks" the sharp edge as it trims the laminate flush. When used properly, the resulting edge is smooth and has a slight radius.

Standard Equipment:

  • 47150 No-File Trim Router Bit

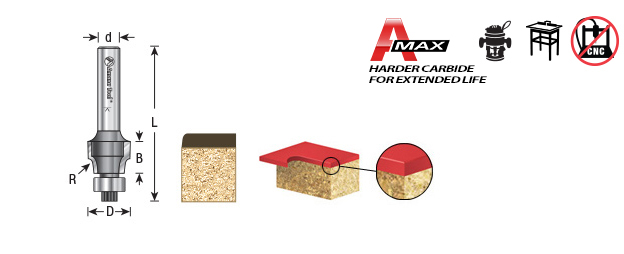

  • Radius (R): 0.059" (1.5mm)
  • Diameter (D): 1/2"
  • Cutting Height (B): 3/8"
  • Shank (d): 1/4"
  • Overall Length (L): 1-7/8"
  • Flutes: 2
  • Replacement Bearing: 47704


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts
