Amana 47147 Laminate Trimmer with Euro Square Bearing Router Bit


Trimming Router Bits: Laminate Trimmer with Euro Square Bearing Router Bits, Carbide Tipped: 1/2" Dia x 19/64" x 1/4" Shank

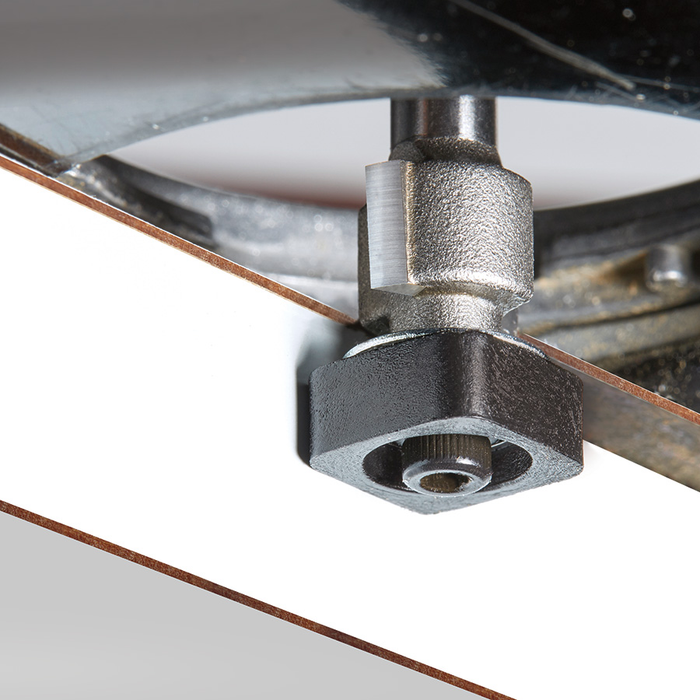

Amana Tool industrial quality carbide tipped laminate trim bits with the Euro Square Bearings. The bits are designed according to specifications with a slight taper allowing for adjustment up or down on the work edge to finish off the edge with a smooth and burr free cut.

The square bearing is manufactured with a strong non-stick Teflon® which won't mark your edge so it can be wiped clean easily.

Standard Equipment:

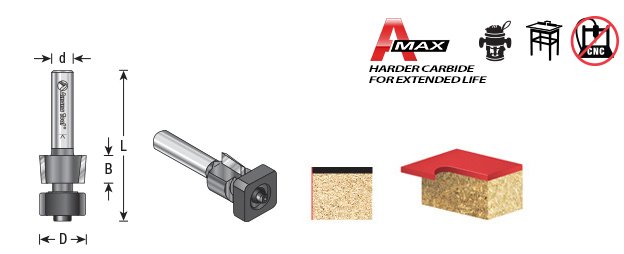

  • 47147 Laminate Trimmer with Euro Square Bearing Router Bit


  • Diameter (D): 1/2"
  • Cutting Height (B): 19/64"
  • Shank (d): 1/4"
  • Overall Length (L): 1-3/4"
  • Flutes: 2
  • Replacement Bearing: SQB100


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts
