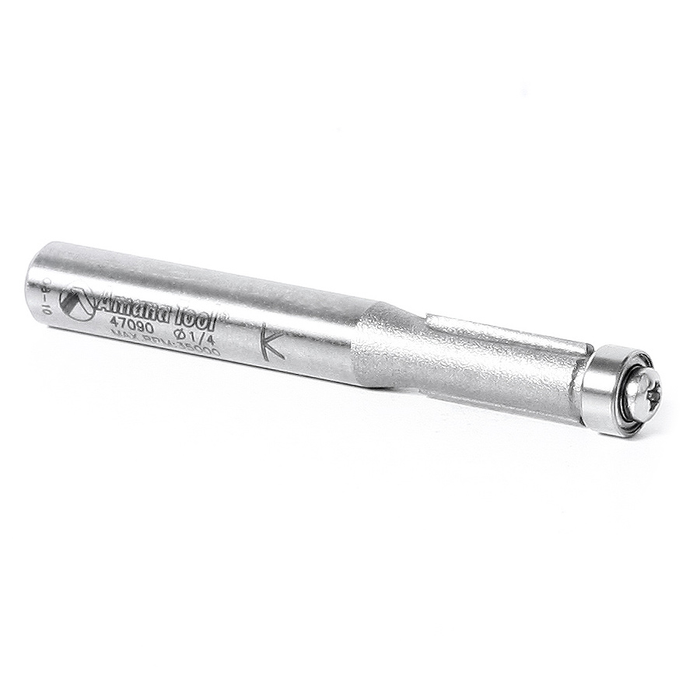

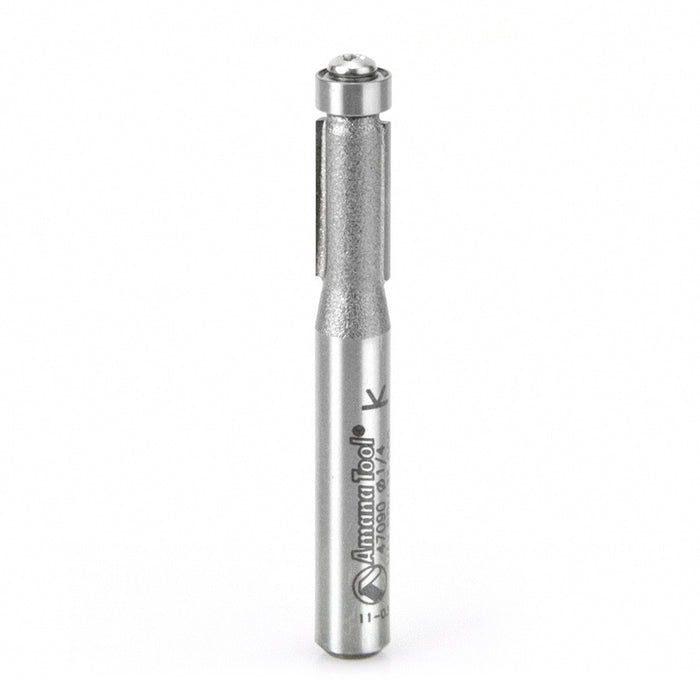

Amana 47090 Flush Trim Router Bit

Sold out

Trimming Router Bits: Flush Trim Router Bits, Carbide Tipped: 1/4" Dia x 1/2" x 1/4" Shank

Use this flush trimming bit for laminate work or for template and pattern work. For template application, the bearing follows the template, while the cutting edges trim the workpiece. With the router handheld, the template is on the bottom of the work. With a table-mounted router, the template is on top. A two-flute bit is a good general-purpose choice, providing fast cuts and good finishes. Excellent for template work. 1/4" diameter for closer inside corner cutting only; bearings not guaranteed due to size.

Standard Equipment:

  • 47090 Flush Trim Flush Trim Router Bit

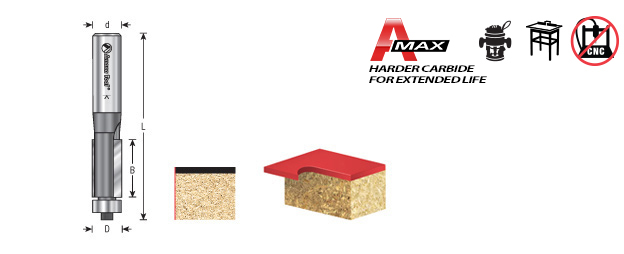

  • Diameter (D): 1/4"
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • Overall Length (L): 2-1/4"
  • Flutes: 2
  • Replacement Bearing: 47723


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts
