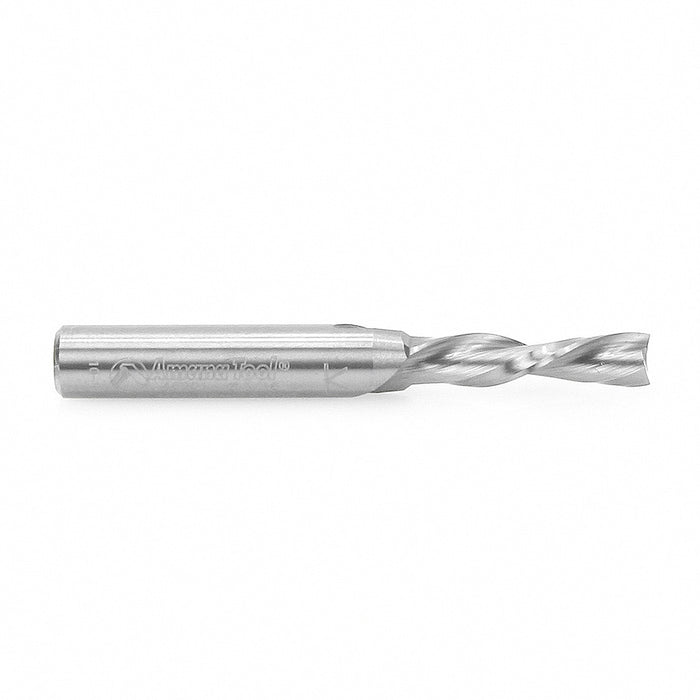

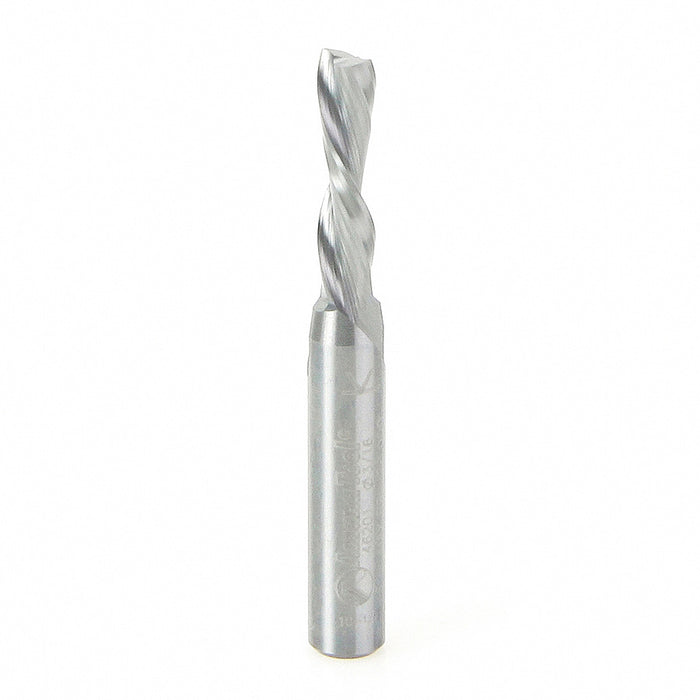

Amana 46201 Solid Carbide Spiral Plunge Router Bit




$27.00
SKU AMAN46201

CNC Router Bits: Spiral Plunge Router Bits, Solid Carbide: 3/16" Dia x 3/4" x 1/4" Shank Down-Cut

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The "Down-Cut" cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Standard Equipment:

  • 46201 Solid Carbide Spiral Plunge Router Bit

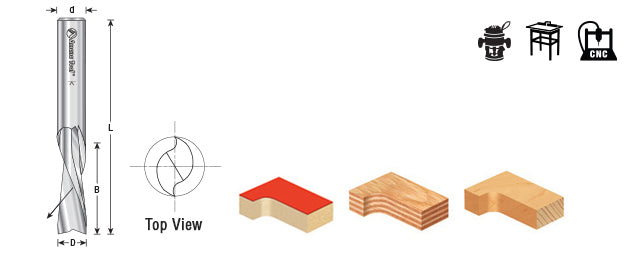

Specifications:

  • Direction: Down-Cut
  • Diameter (D): 3/16"
  • Cutting Height (B): 3/4"
  • Shank (d): 1/4"
  • Overall Length (L):2"
  • Flutes: 2

Features:

  • Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance
  • The ÔDown-CutÕ cuts from the surface down leaving a smooth edge at the surface
  • Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials
