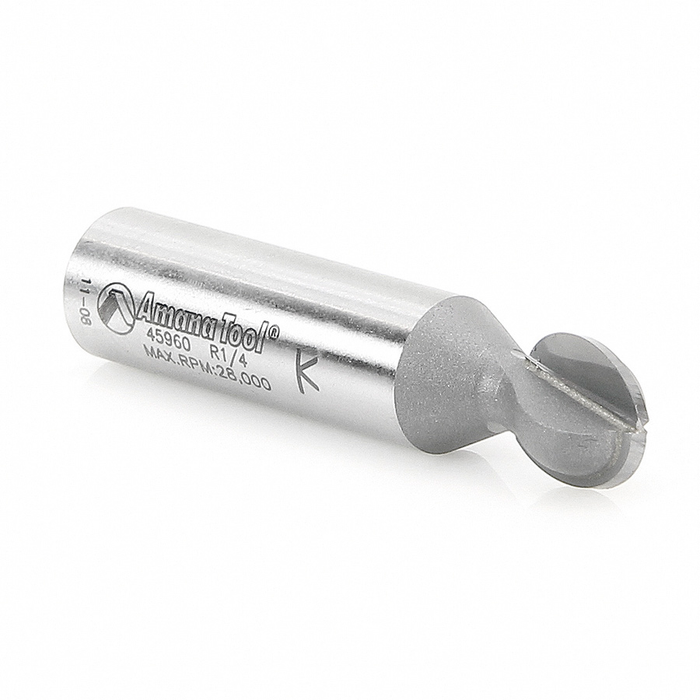

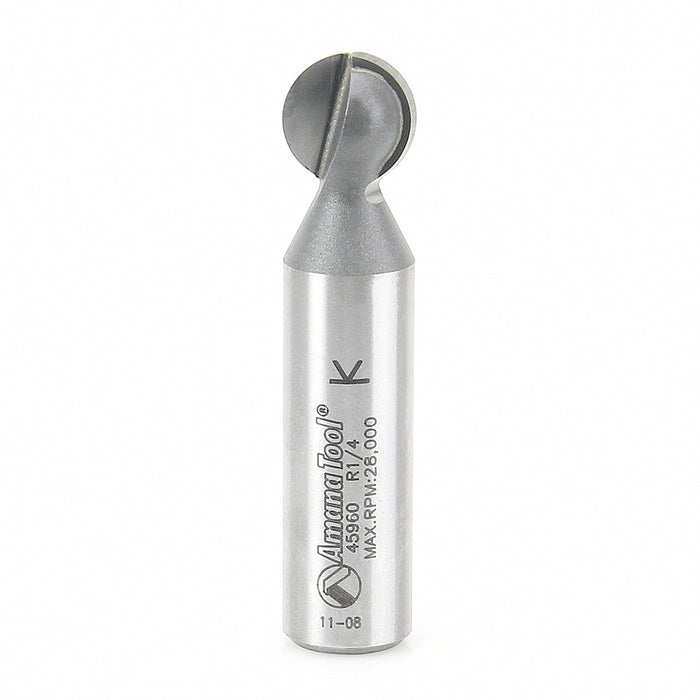

Amana 45960 Ball End Router Bit


Profiling Router Bits: Ball End Router Bits, Carbide Tipped: 1/4" Rad x 7/16" Dia x 1/2" x 1/2" Shank

Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.

Standard Equipment:

  • 45960 Ball End Router Bit


  • Radius (R): 1/4"
  • Diameter (D): 1/2"
  • Cutting Height (B): 7/16"
  • D1: 1/4"
  • Shank (d): 1/2"
  • Overall Length (L): 2-1/4"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
